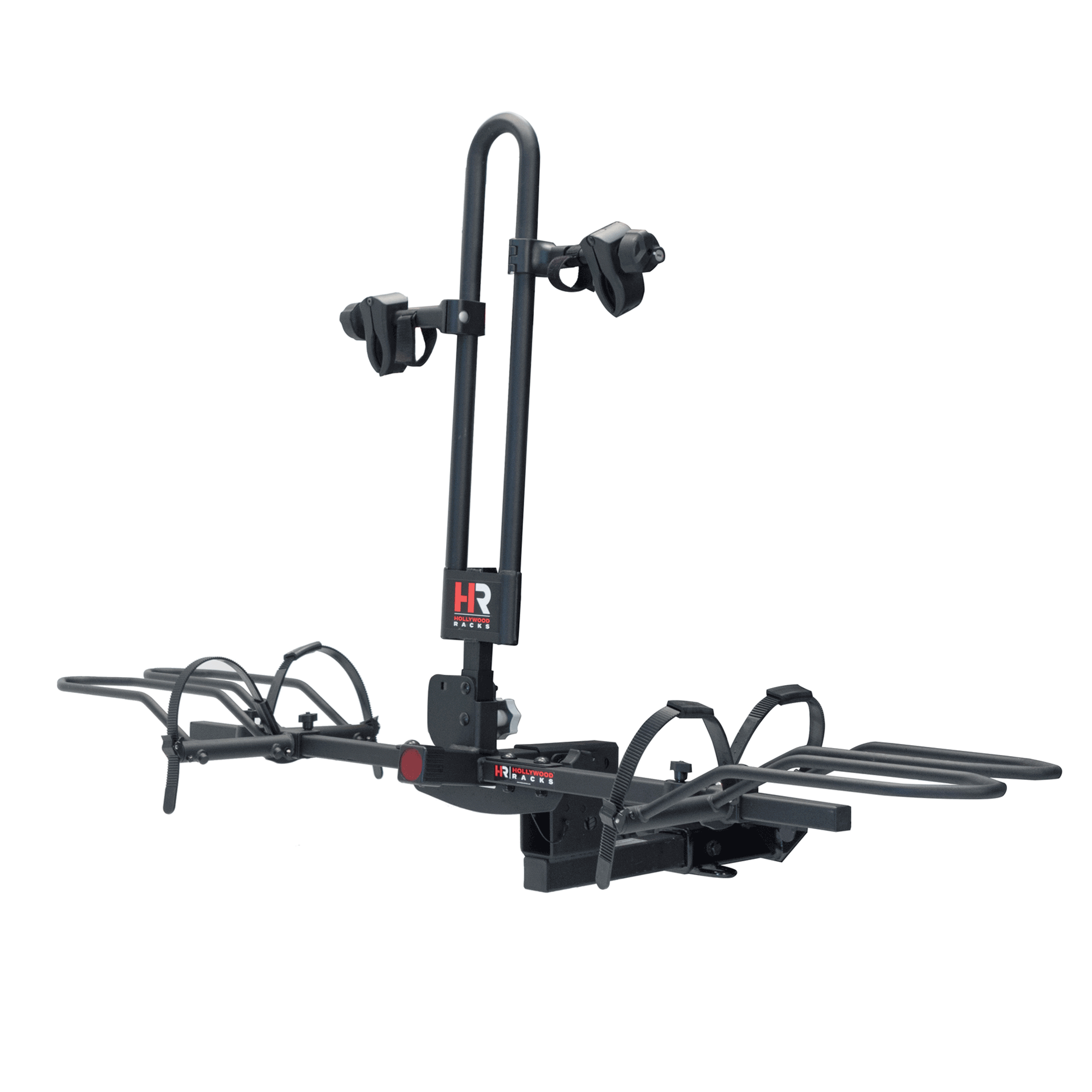

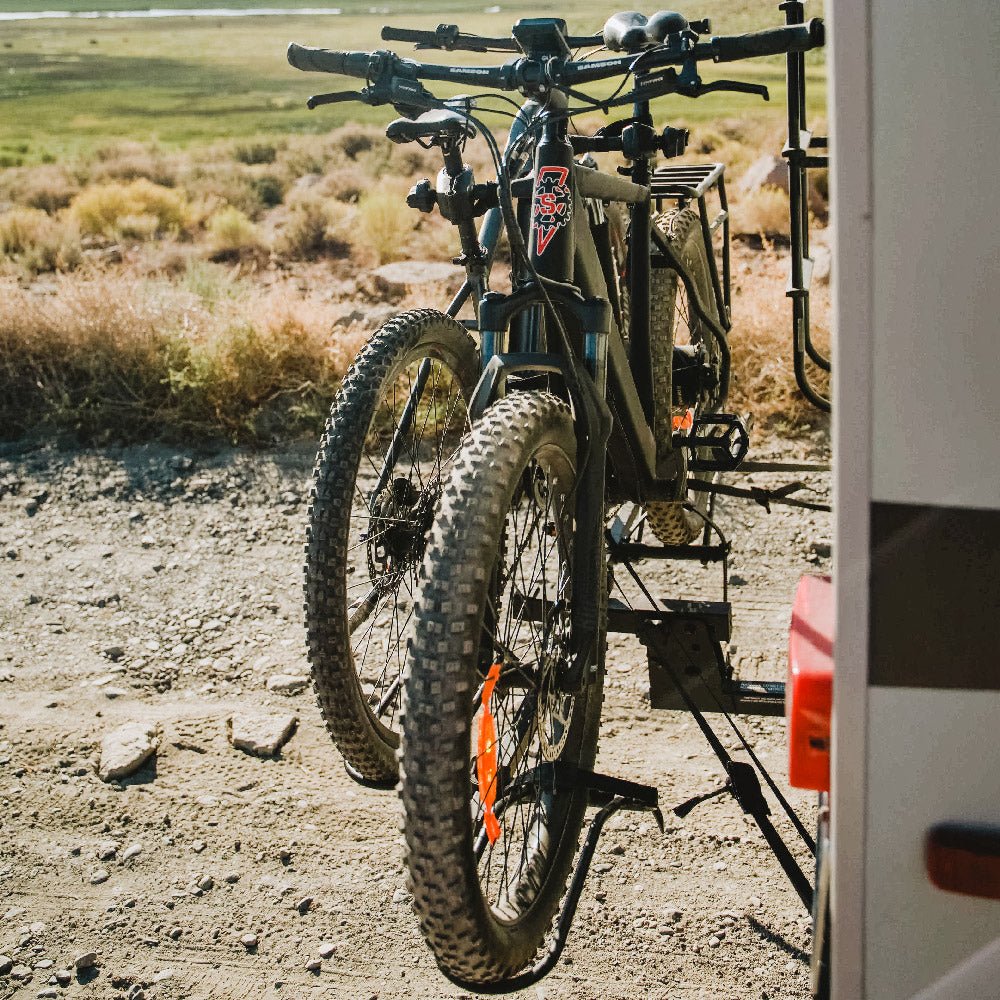

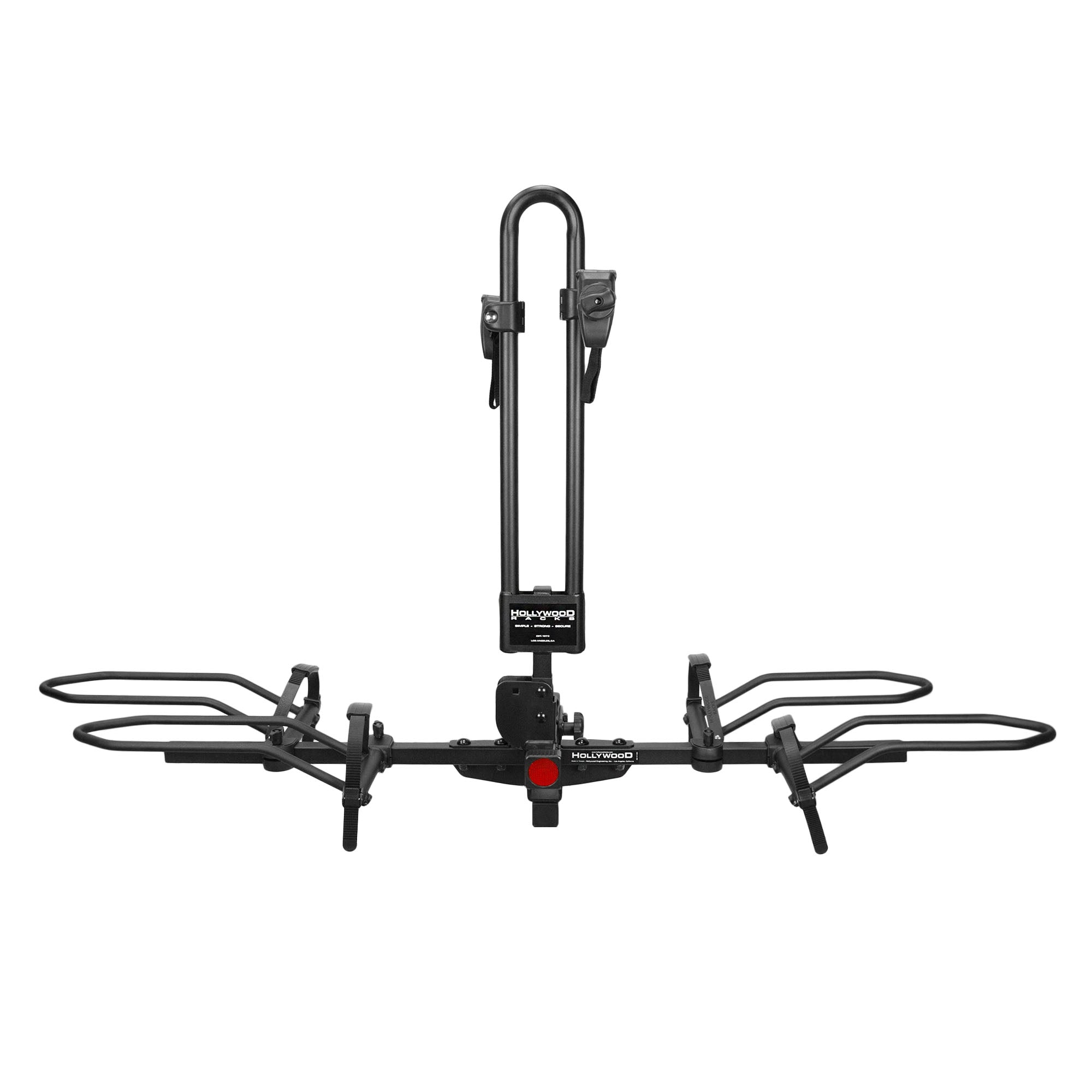

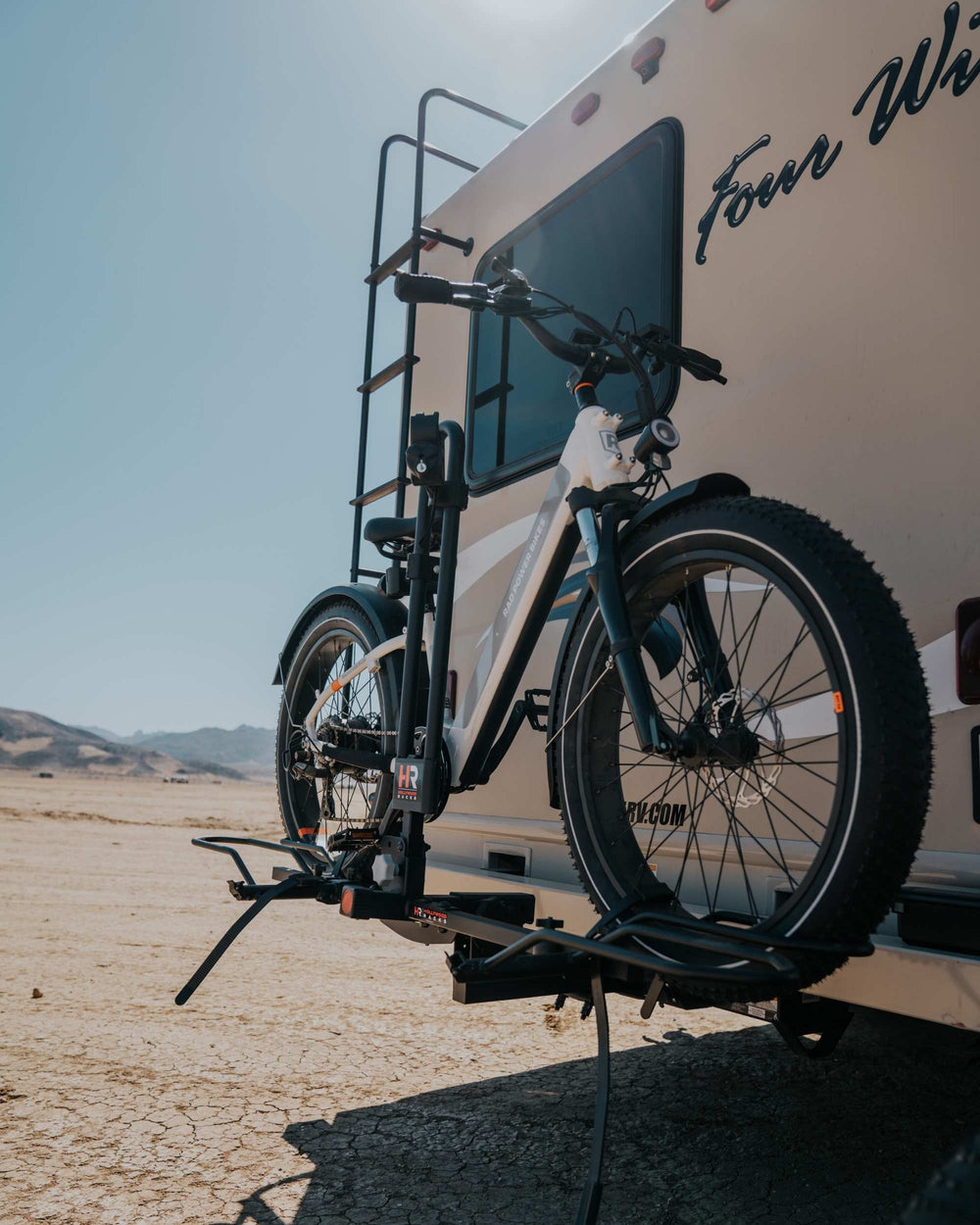

The RV Rider heavy duty ebike rack for RV's, motorhomes, and fifth wheels carries 2 E-Bikes (up to 80 lbs. each) on the back of an RV Motorhome, a 5th wheel, or a flat towed vehicle. Special features include universal heavy-duty wheel holders for heavy load carrying capacity. These wheel holders can fit any tire up to 5" wide and include a ratchet wheel strap. Locking frame grabbers secure the bikes in place. The frame grabbers can attach to a bike's frame or seat tube with a diameter range of 1"- 2", therefore Bike Adapters are not needed and should not be used. A locking cable and keyed alike hitch pin secure the bikes to the rack and the rack to the vehicle. The bike rack folds up when not in use and can tilt down for rear cargo access.
A double-walled receiver tube handles the extra weight of the electric bikes. An included hitch tightener reduces motion inside the hitch (the receiver hitch must have a flange). A minimum class 3 trailer hitch is required to use this bike rack.
This bike rack is not compatible with bumper pull, travel trailers or bumper mounted hitch receivers.

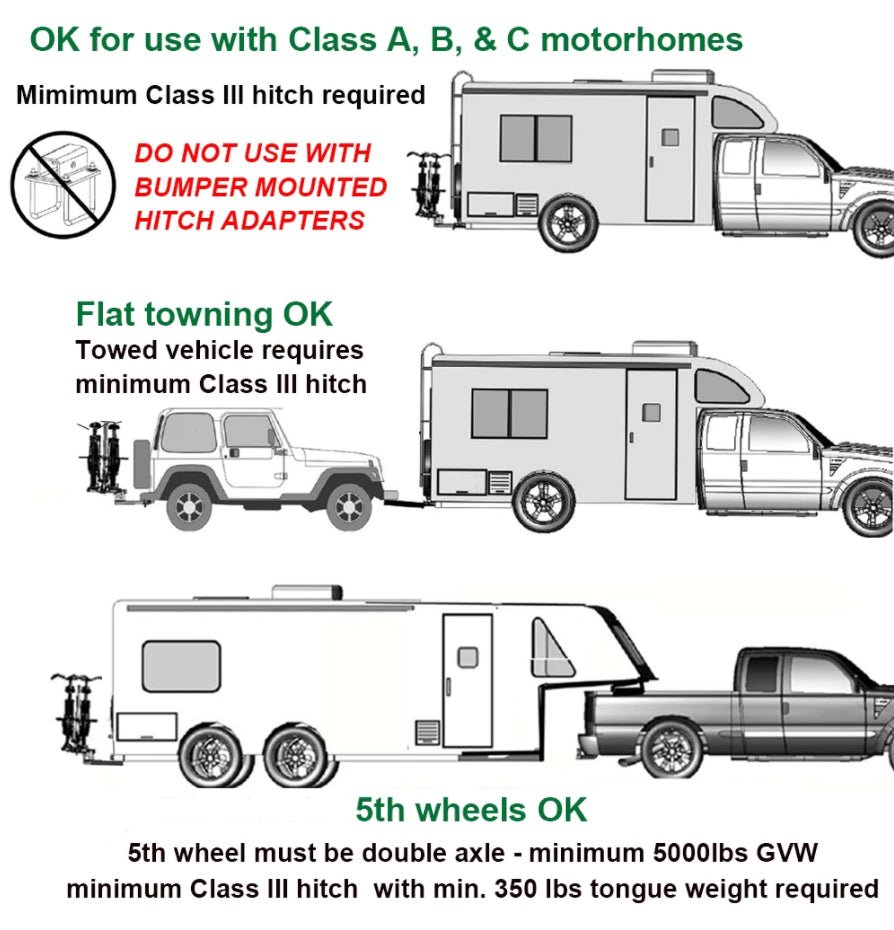

Class A, B & C RV Motorhome:
Flat Towing:
5th Wheel:
- Dimensions & weight

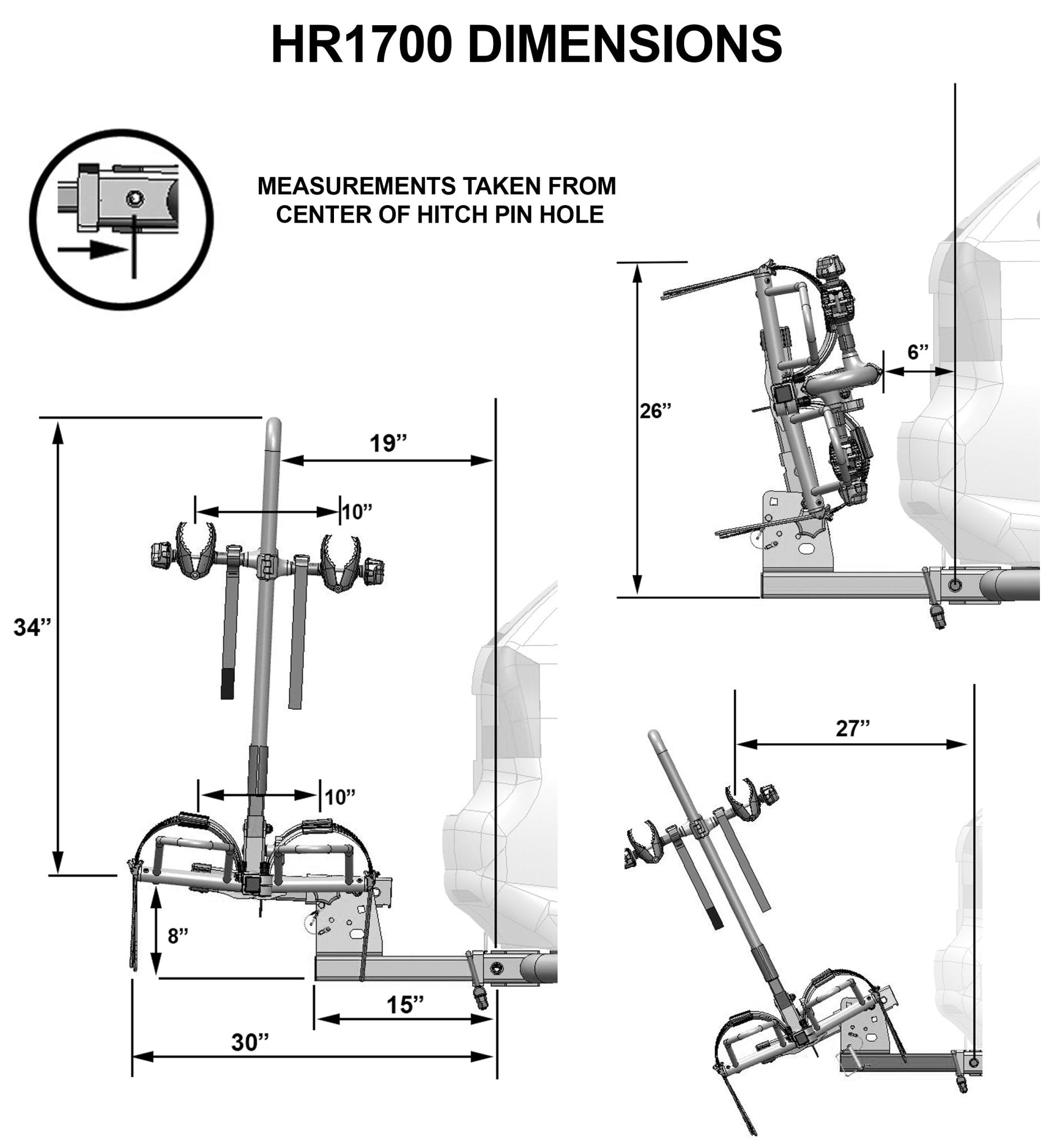

- Dimensions Diagram
- Capacity: Two Bikes (Max. 80 lbs. per bike)
- Hitch Size: 2” only (Do not use a 1 ¼” -2” hitch adapter)
- Requires Class 3 , 2" Hitch
- Maximum bike wheelbase: 60”
- Minimum wheelbase: 36"
- Maximum tire width: 5"
- Features extra heavy duty wheel holders (Now with ratchet straps and rim protectors), an internally reinforced frame, and an external brace for heavy load carrying capacity
- Includes keyed-alike locking hitch pin, 8’ security cable, and locking frame grabbers
- The frame grabbers on this rack can hold step through bikes by the seatpost, therefore Bike Adapters are not needed and should not be used.
- Now includes two Small Wheel Adapter (SW-ADP-U) for 20" Fat tire bikes rear wheels to prevent derailleur hanger interference (You will only need one per bike)
- Not to be used with any 1-1/4" - 2" Adapter
- Not to be used with any Hitch Extension longer than 8"
- Not to be used on any trailer
- Not to be used with a bike cover
- Not intended for use with motorized gasoline bicycles, mopeds, motorcycles or 3 wheel bikes (trikes), or electric scooters
- The RV Rider is the only rack that can be used on front hitches
- Rack Weight: 63.5 lbs.
- Limited Lifetime Warranty
- Minimum Trailer Hitch Tongue Weight: 350 lbs
- Minimum Vehicle Length: 24'
- Minimum GVW: 5,000 lbs
- Double Axle Required
Installation Instructions for HR1700
RV Rider E-Bike Rack
Add your Accessories before you proceed to checkout.
Description
Installation
Specifications
Replacement Parts
Product Faq's
The Heavy-Duty Bike Rack Built for RVs, Motorhomes & 5th Wheels

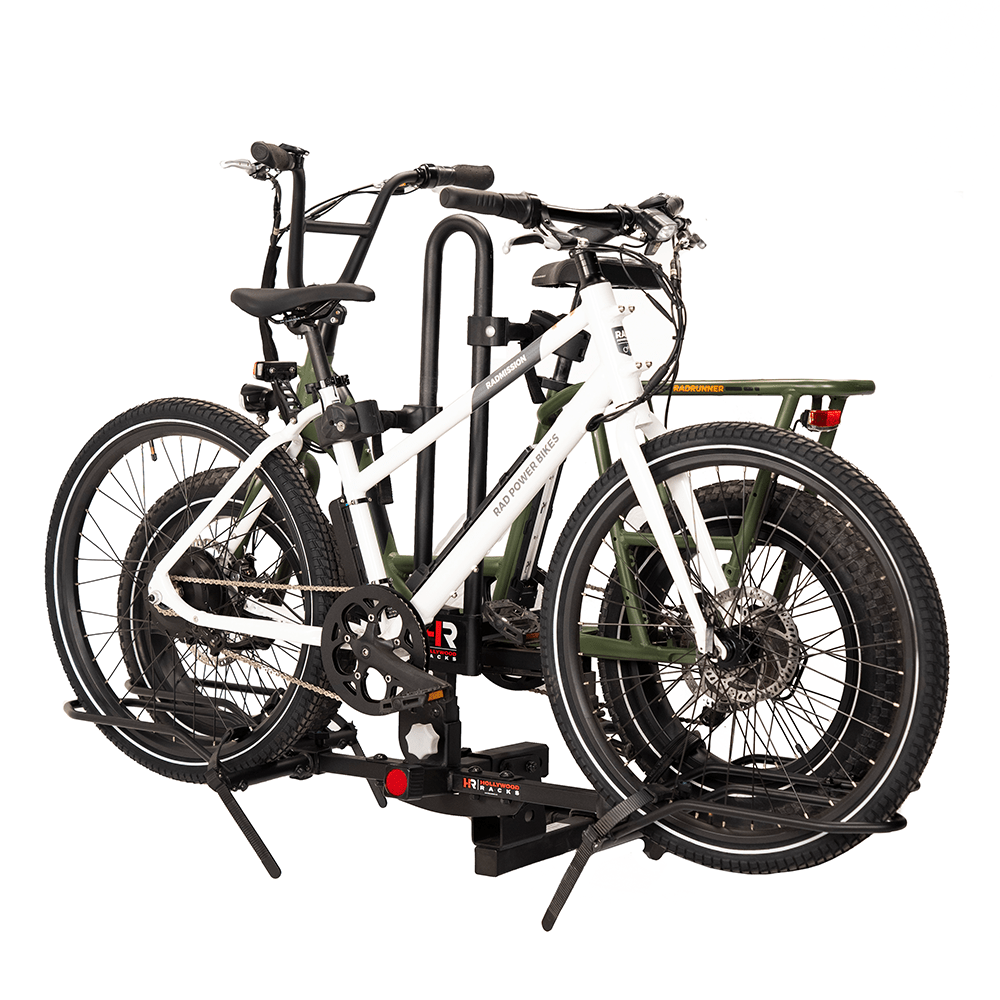

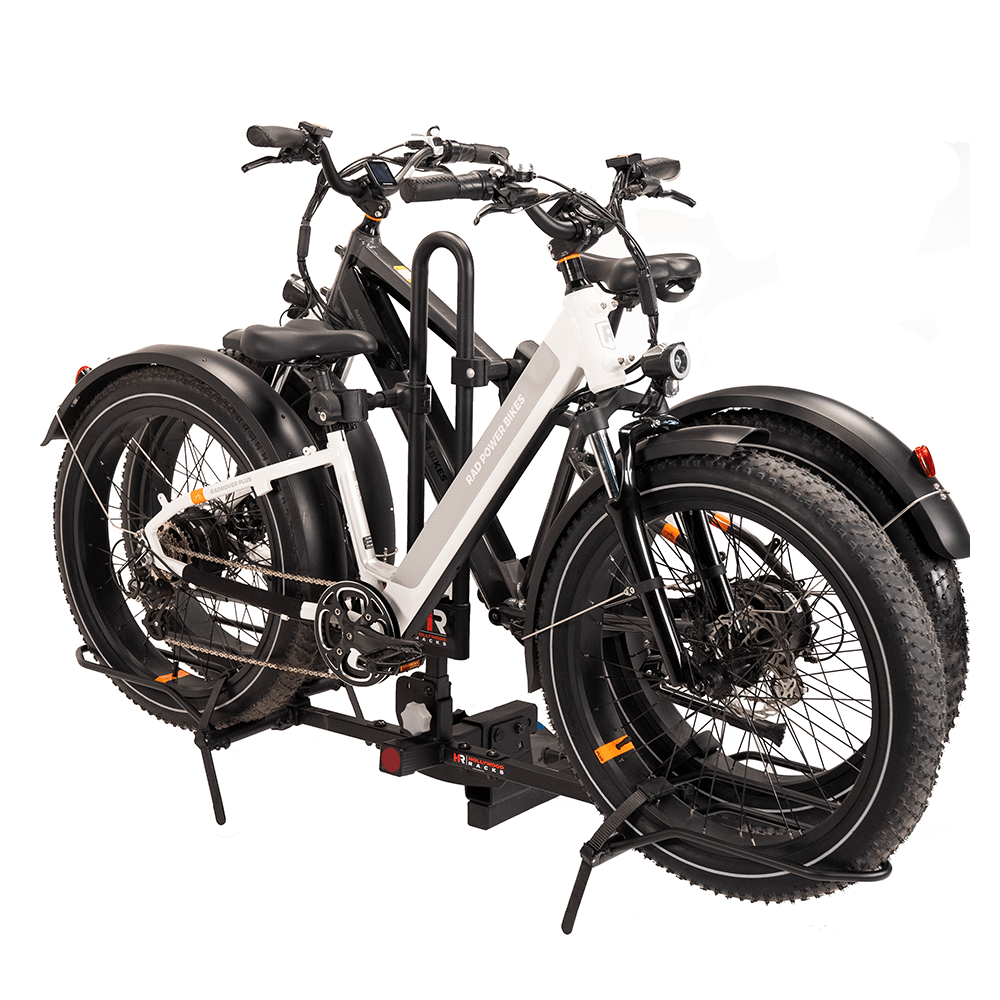

Carries Up to 80 lbs Per Bike — Heavy E-Bikes Welcome
The RV Rider is rated for two bikes up to 80 lbs each, making it one of the few hitch racks capable of handling the heaviest electric bikes on the market. It also fits tires up to 5" wide and wheelbases between 36" and 60", covering a wide range of bike types and sizes.

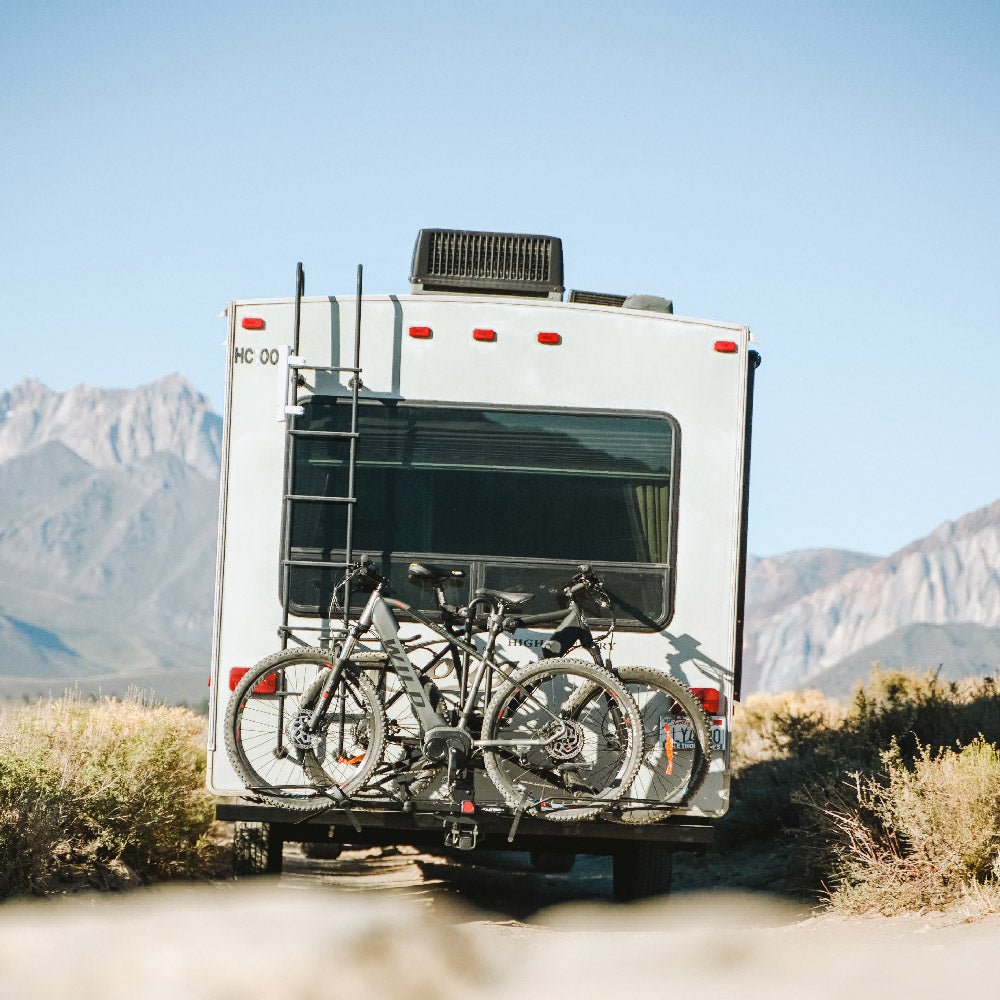

Purpose-Built for RVs, Motorhomes & 5th Wheels
Unlike standard hitch racks, the RV Rider is specifically engineered for the demands of Class A, B, and C motorhomes, 5th wheels, and flat-towed vehicles. It features an internally reinforced frame and an external brace to handle the extra stress and vibration that comes with RV travel.

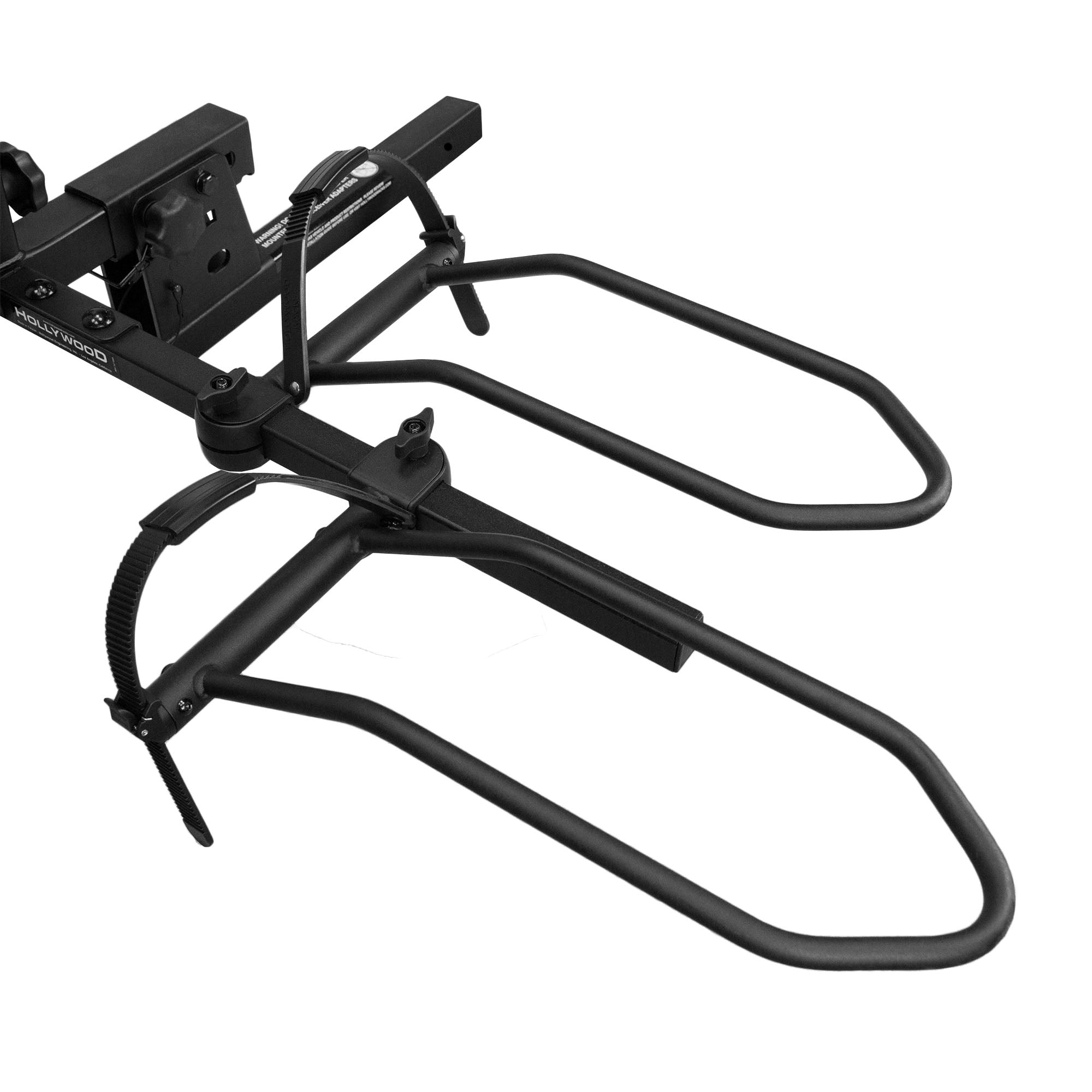

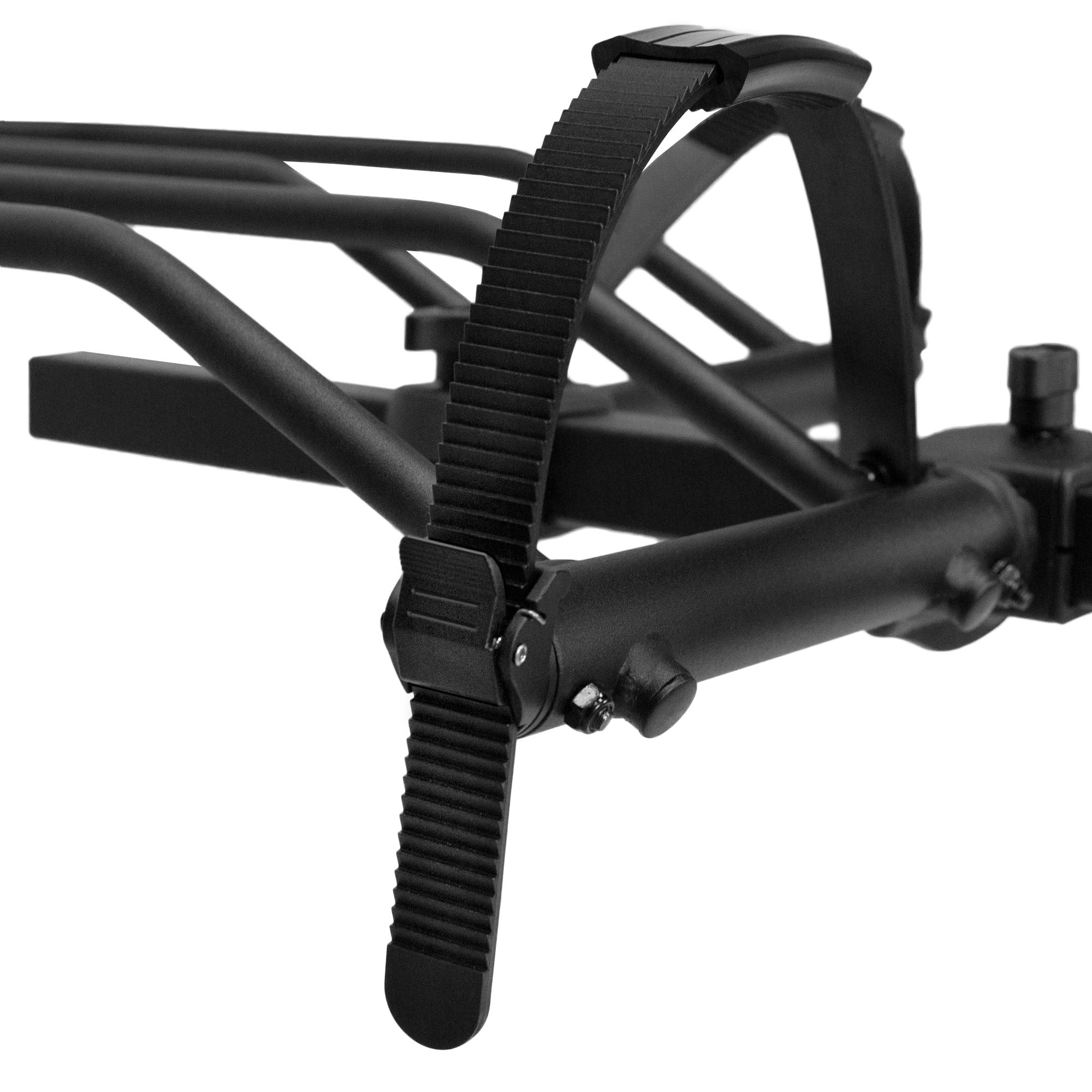

Heavy-Duty Wheel Holders with Ratchet Straps & Rim Protectors
The universal wheel holders are built for heavy loads and fit any tire up to 5" wide, with integrated ratchet straps and rim protectors to keep wheels locked in place without causing damage. Two Small Wheel Adapters are also included for 20" fat tire bikes to prevent derailleur hanger interference.
Locking Frame Grabbers, Security Cable & Keyed-Alike Hitch Pin
The RV Rider comes with locking frame grabbers that attach to your bike's frame or seat tube, an 8-foot security cable, and a keyed-alike hitch pin — all included in the box. The frame grabbers work for step-through bikes by securing to the seat post, so no separate bike adapter is needed.

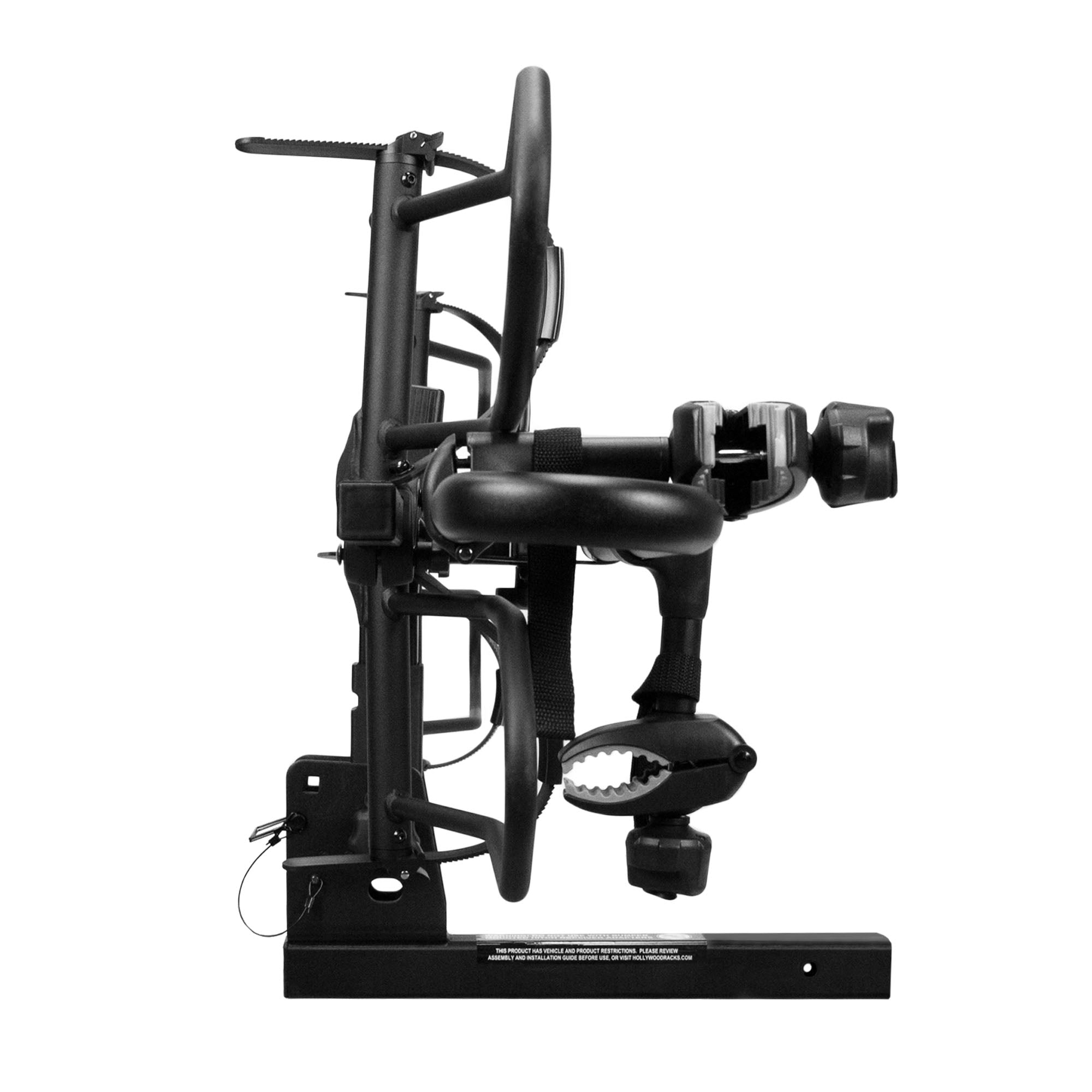

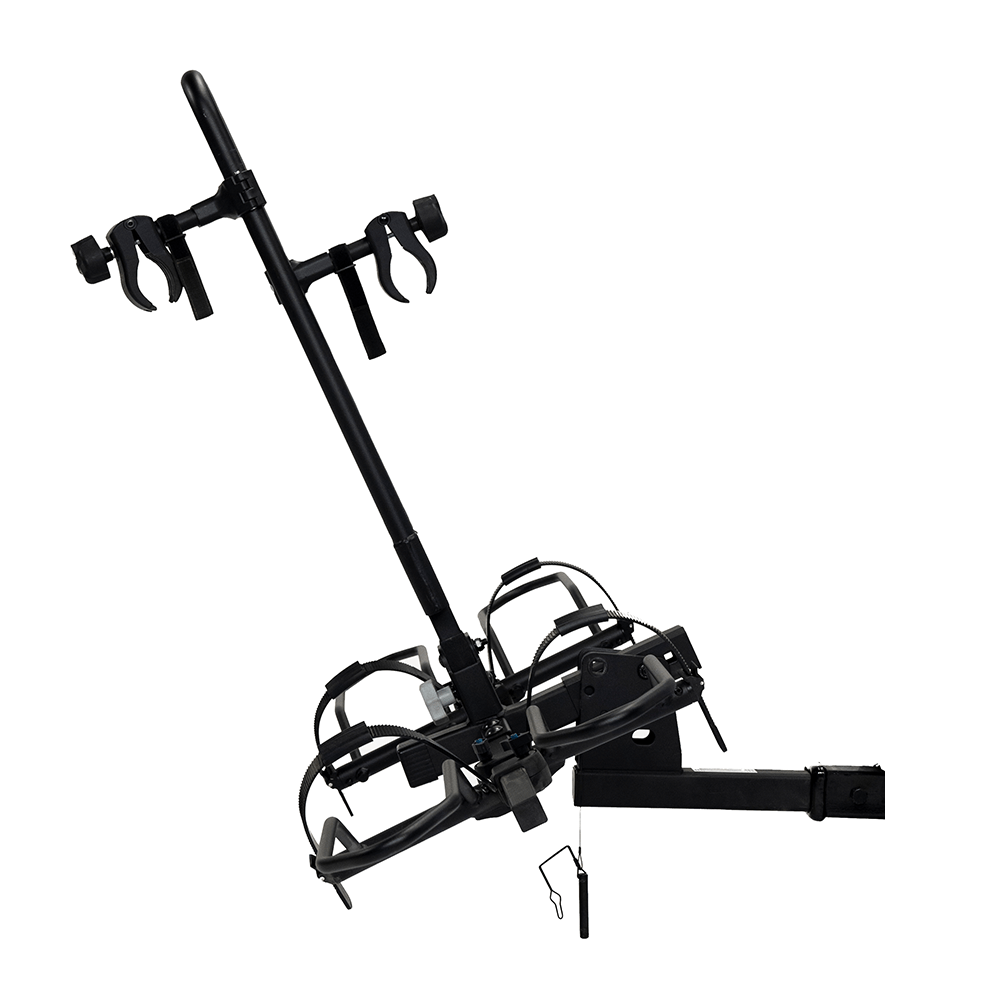

Tilts Down for Rear Cargo Access, Folds Up When Not in Use
The rack tilts down so you can reach the back of your RV without unloading your bikes first, then folds flat when you're not riding. An included hitch tightener reduces movement inside the receiver, keeping the rack stable and rattle-free on the road.

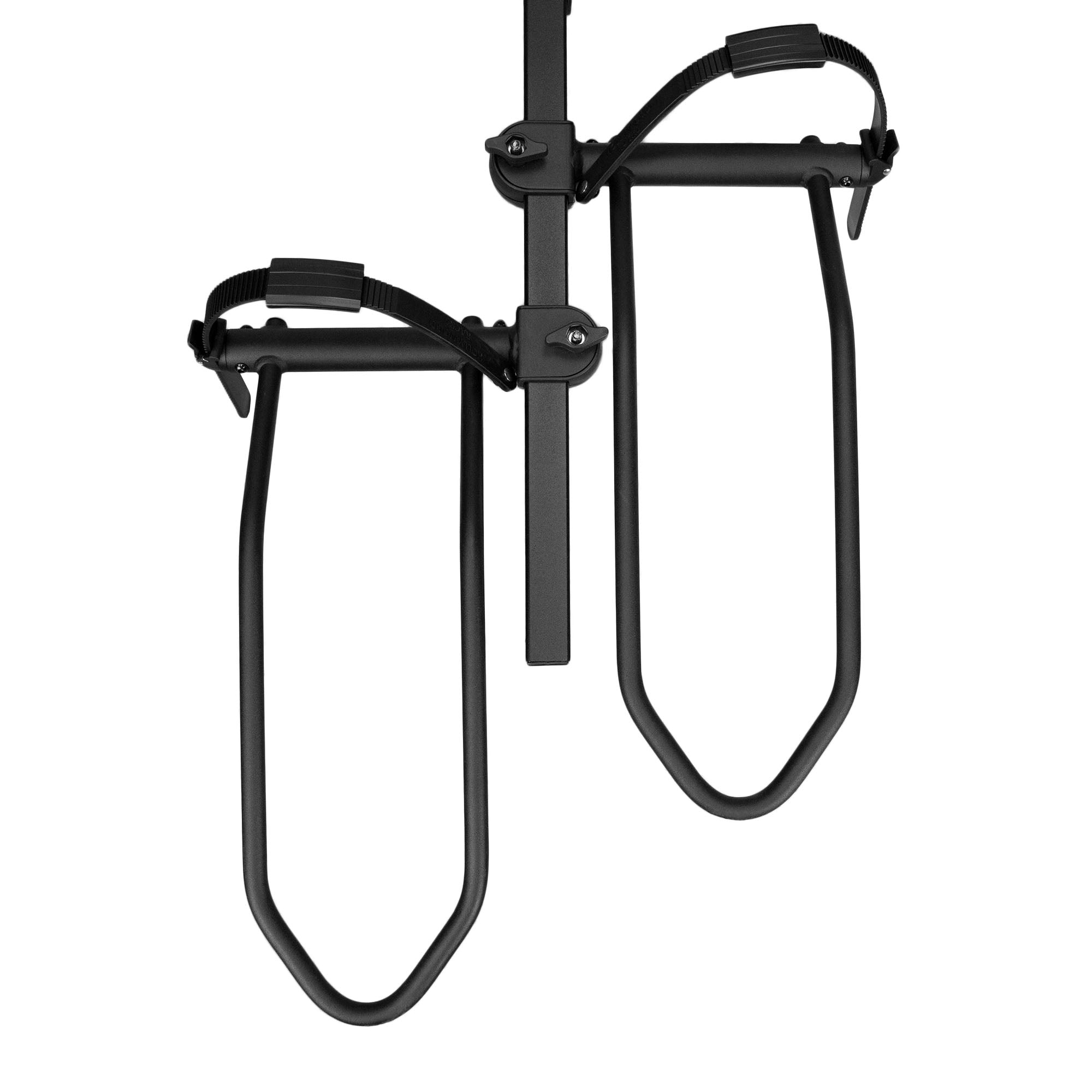

UNIVERSAL WHEEL HOLDERS
Loading & unloading your E-bikes has never been easier — easy on your back and easy on your bike!

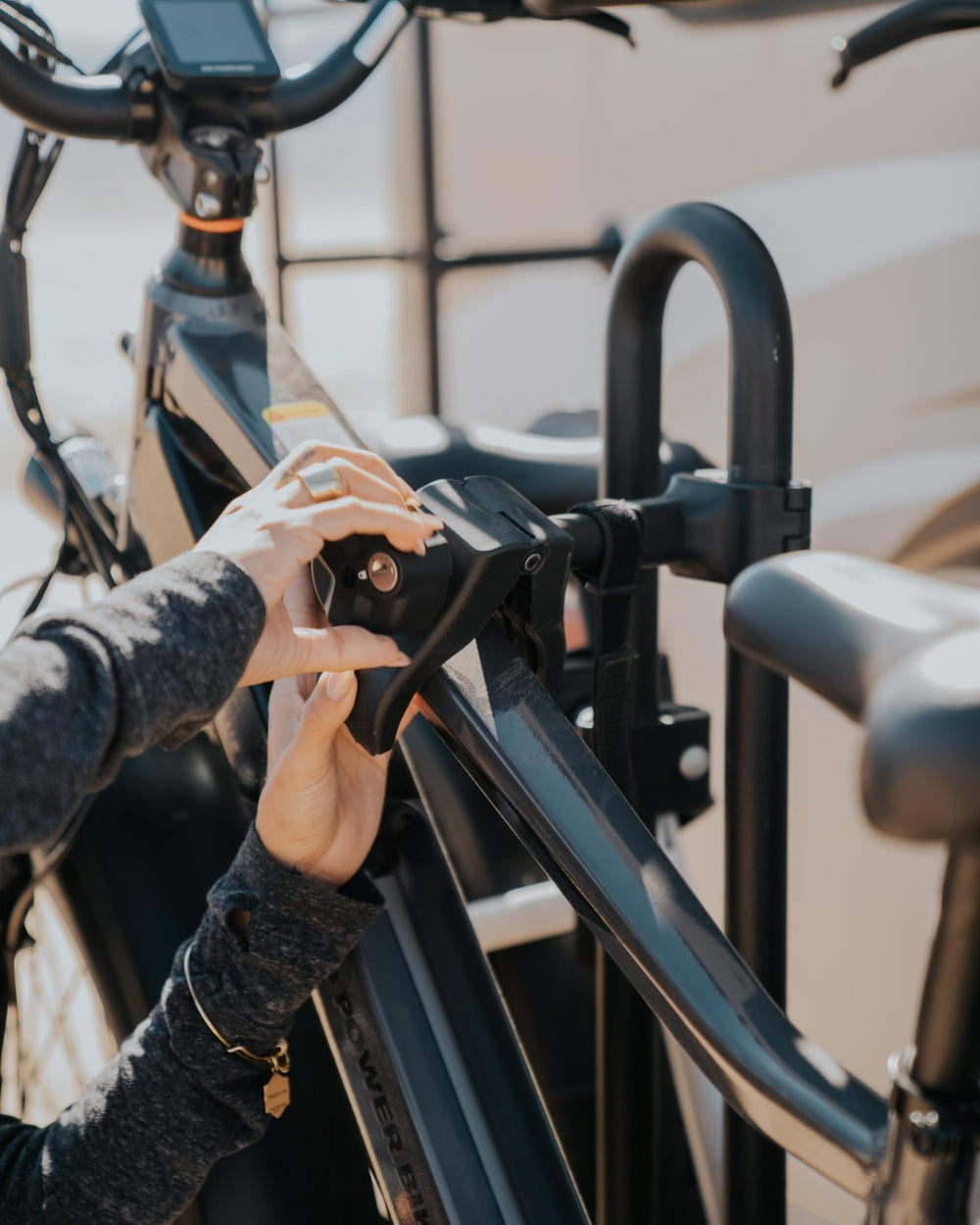

Locking frame grabbers
Attach to a bike's frame or seat tube with a diameter range of 1"- 2" for ease of use.

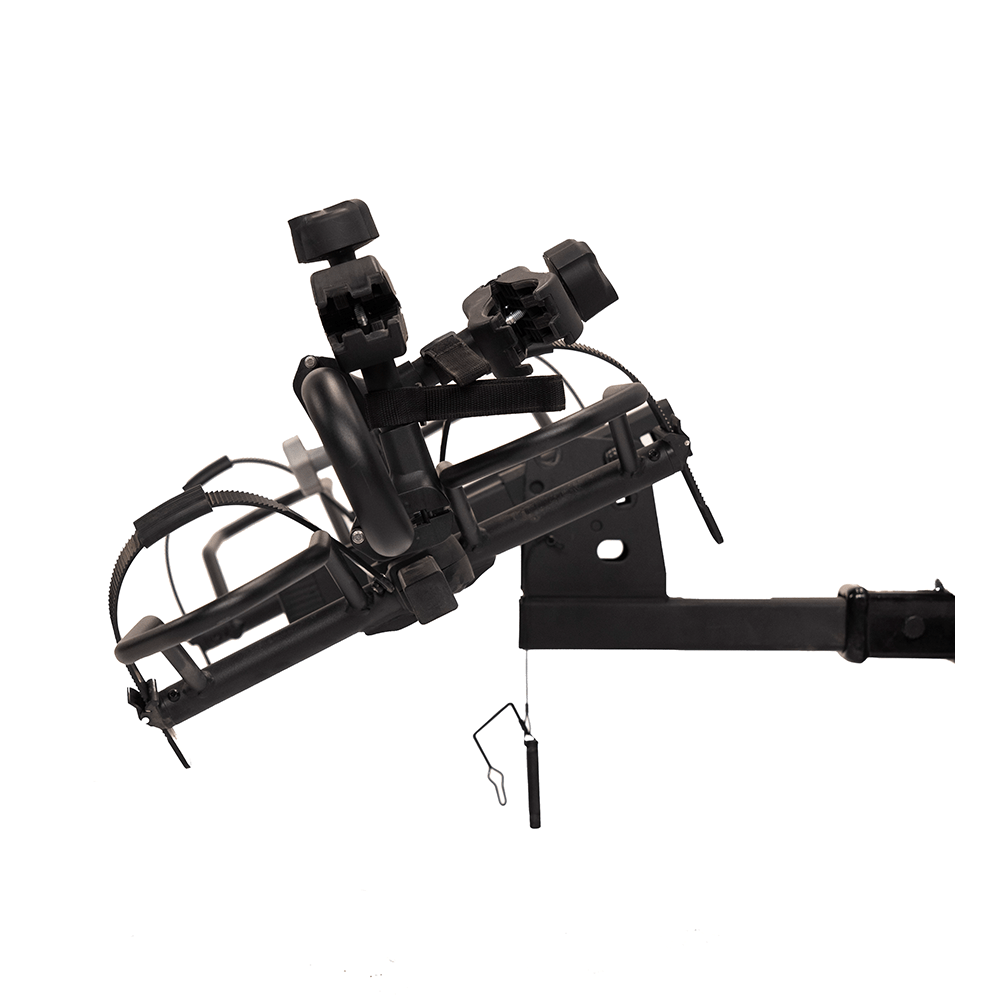

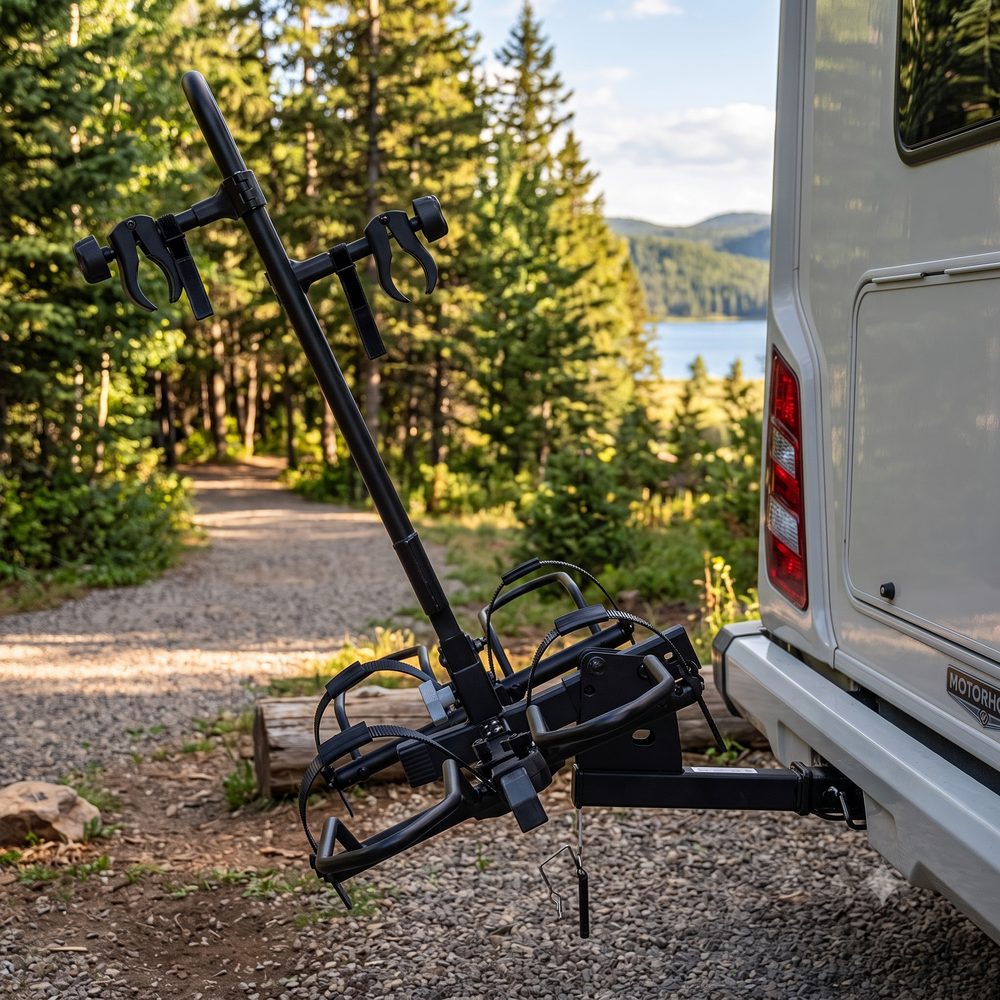

TILTS DOWN FOR EASY ACCESS TO THE BACK OF YOUR RV
The RV RIDER bike rack folds up when not in use and can tilt down for rear cargo access.

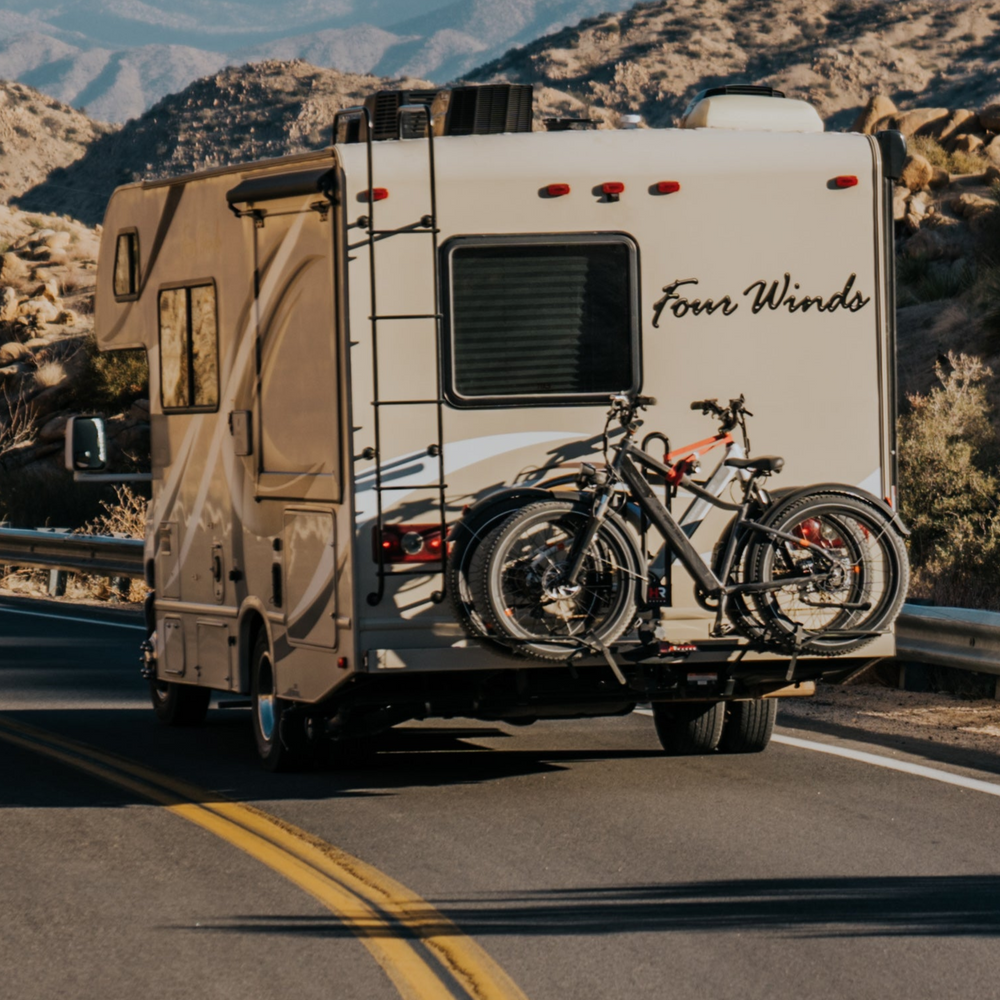

DESIGNED purposefully FOR RV's, motorhomes, and fifth wheels
Experience the ultimate combination of strength, security, and convenience with the RV Rider bike rack. Engineered with your RV and electric bikes in mind, this exceptional rack is primed to accompany you on all your thrilling adventures. Trust in its robust design and unwavering reliability to keep your bikes safe and secure, so you can focus on the joy of the journey ahead.
FAQ
How much does the RV Rider weigh fully assembled?
Fully Assembled the RV Rider weighs 63.5lbs.
Does the RV Rider have a ramp?
No. The RV Rider's adjustable Universal Wheel Holders are designed to accommodate a variety of wheelbases and tire sizes. Due to the adjustability, the rack is not compatible with a bike ramp.
Are replacement parts available for the RV Rider?
Yes, Click the Replacement Parts Link on this webpage. And searching the replacement parts diagram for the parts you need to replace.
What’s the maximum weight limit of the RV Rider?
The maximum weight limit per bike is 80lbs.
Is it possible to install the Sport Rider Trike Adapter on the RV Rider?
No the RV Rider is not compatible with the Sport Rider Trike Adapter.
Can I use a bicycle cover with the RV Rider?
Bicycles cover, especially at highway speeds, turn into a big sail, creating a tremendous amount of force on the rack, its parts and your bikes. Over time this could lead to damaging your bike, the rack or its parts
Does the rack work with low level stepthrough frames?.

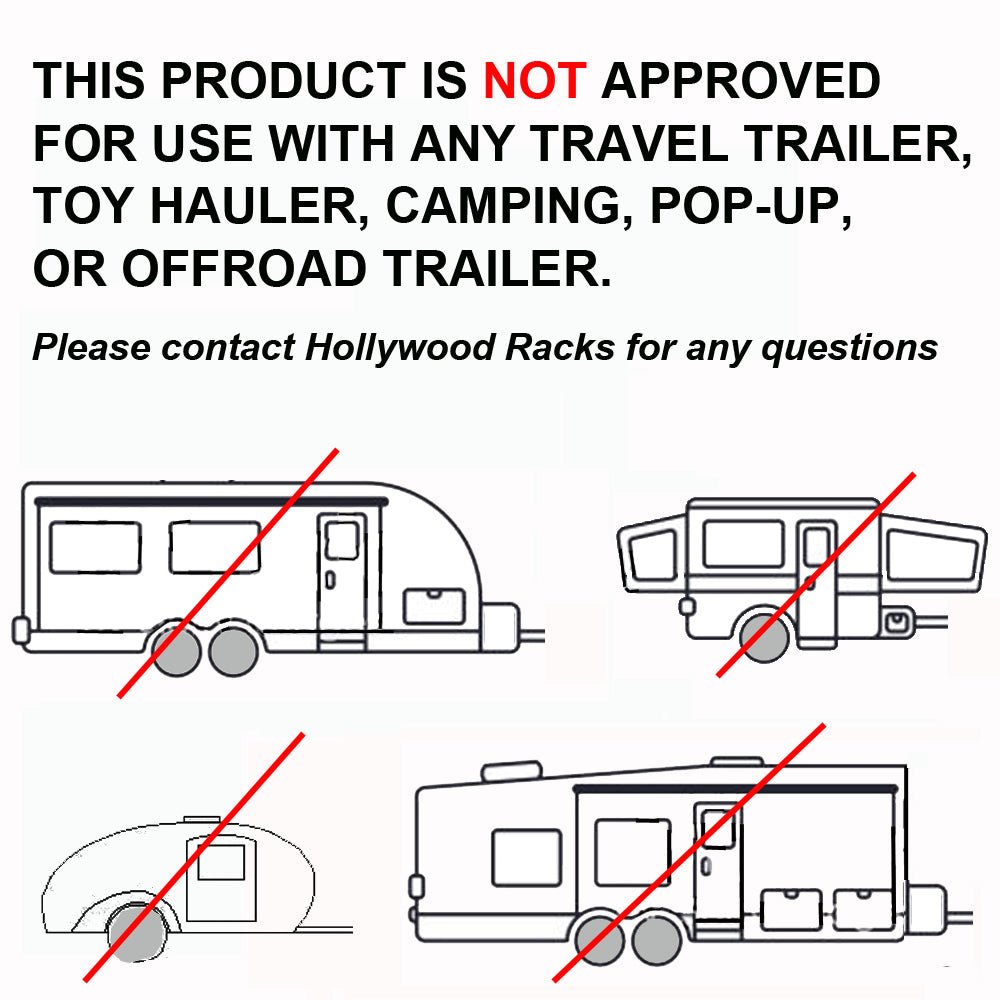

Can I use the RV Rider with my travel trailer?
No, the RV Rider is not approved for use with travel trailers.
What vehicles / use is the RV Rider compatible with?
The RV Rider is approved for use with SUVs, Trucks, Sprinter Van type RVs. RVs, and 5th wheel. The rack is also approved for use in either flat-tow or front-tow capacity.
Can I use a hitch extension with the RV Rider?
Yes, We actually have a 7” Hitch extension available on our site and we can key it to match your rack! Do not use a hitch extender over 8 inches with the RV RIder.
How much does the RV Rider weigh fully assembled?
Fully Assembled the RV Rider weighs 63.5lbs.
Does the RV Rider have a ramp?
No. The RV Rider's adjustable Universal Wheel Holders are designed to accommodate a variety of wheelbases and tire sizes. Due to the adjustability, the rack is not compatible with a bike ramp.
Are replacement parts available for the RV Rider?
Yes, Click the Replacement Parts Link on this webpage. And searching the replacement parts diagram for the parts you need to replace.
What’s the maximum weight limit of the RV Rider?
The maximum weight limit per bike is 80lbs.
Is it possible to install the Sport Rider Trike Adapter on the RV Rider?
No the RV Rider is not compatible with the Sport Rider Trike Adapter.
Can I use a bicycle cover with the RV Rider?
Bicycles cover, especially at highway speeds, turn into a big sail, creating a tremendous amount of force on the rack, its parts and your bikes. Over time this could lead to damaging your bike, the rack or its parts
Does the rack work with low level stepthrough frames?.
Can I use the RV Rider with my travel trailer?
No, the RV Rider is not approved for use with travel trailers.
What vehicles / use is the RV Rider compatible with?
The RV Rider is approved for use with SUVs, Trucks, Sprinter Van type RVs. RVs, and 5th wheel. The rack is also approved for use in either flat-tow or front-tow capacity.
Can I use a hitch extension with the RV Rider?
Yes, We actually have a 7” Hitch extension available on our site and we can key it to match your rack! Do not use a hitch extender over 8 inches with the RV RIder.
