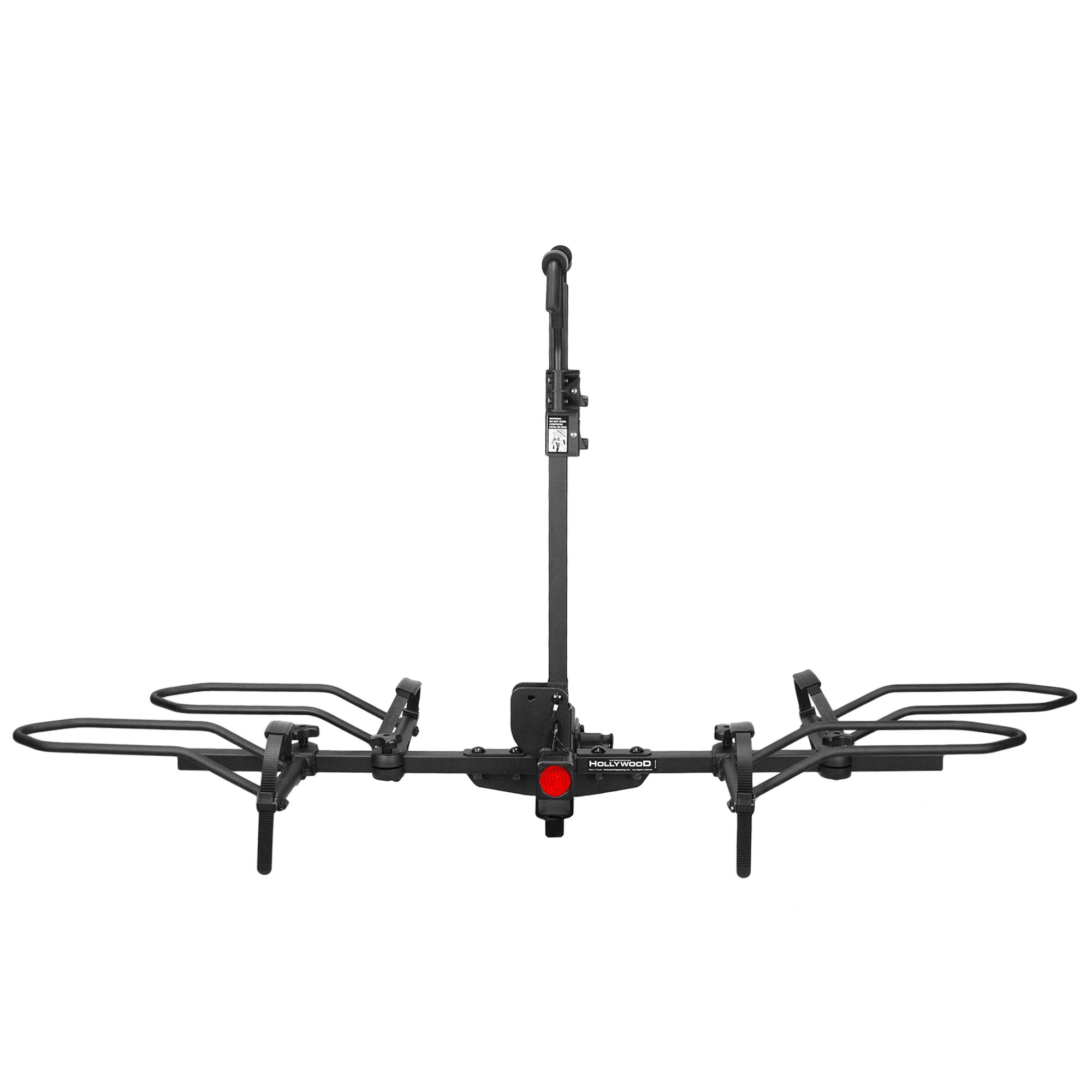

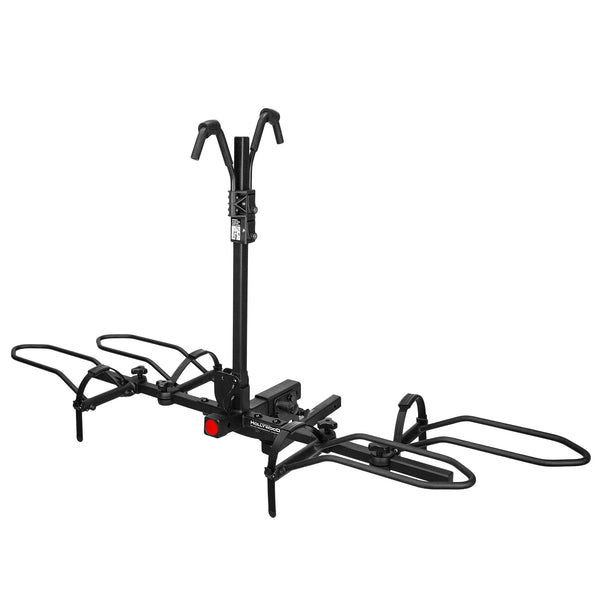

Sport Rider for Electric Bikes (1-1/4")
The Sport Rider Hitch Bike Rack for Electric Bikes is the E-bike version of the Sport Rider SE2. This rack will carry 2 electric bikes or 2 standard bikes. Special features include extra heavy duty wheel holders for heavy load carrying capacity. This hitch rack folds up when not in use, tilts down for easy cargo access and includes a keyed alike locking hitch pin, security cable and locking frame hooks. For 1-1/4" Class 2 or above hitches.
Please note a 1-1/4 Class 2 hitch is required for this rack. If you are not sure what class size you have, please email us a photo of your receiver hitch and we will let you know.
A Class 1 and Class 2 hitches both have a 1-1/4 inch receiver hitch. The difference is that a Class 1 hitch has a lower tongue weight rating, usually 200 pounds and a lower towing rating, usually 2,000 pounds. A Class 2 hitch usually has a tongue weight rating of 350 pounds and a towing rating of 3,500 pounds.
The Sport Rider Hitch Bike Rack for Electric Bikes is the E-bike version of the Sport Rider SE2. This rack will carry 2 electric bikes or 2 standard bikes. Special features include extra heavy duty wheel holders for heavy load carrying capacity. This hitch rack folds up when not in use, tilts down for easy cargo access and includes a keyed alike locking hitch pin, security cable and locking frame hooks. For 1-1/4" Class 2 or above hitches.
Please note a 1-1/4 Class 2 hitch is required for this rack. If you are not sure what class size you have, please email us a photo of your receiver hitch and we will let you know.
A Class 1 and Class 2 hitches both have a 1-1/4 inch receiver hitch. The difference is that a Class 1 hitch has a lower tongue weight rating, usually 200 pounds and a lower towing rating, usually 2,000 pounds. A Class 2 hitch usually has a tongue weight rating of 350 pounds and a towing rating of 3,500 pounds.
LED Light Compatibility Issues with some vehicles
Some newer vehicles, including the Ford F-150 with a factory-installed tow package, are not compatible with the LED Bar or other LED trailer lighting systems. This is because the vehicle’s tow package or electrical system has been designed to be used with automotive light bulbs. These light bulbs require more electrical current than LED lights. For these vehicles, the LED Bar will either not function at all or function incorrectly. They may also produce a warning light on your dash that one of your light bulbs is out OR cause your turn signals to flash faster than normal. This is because the vehicle “thinks” there is a bulb out due to the low electrical current of the LED.
These vehicles include:
2016-2023 OEM tow package equipped Ford F-Series trucks, sprinter vans,
Expeditions, Excursions, Explorers, Rangers, Broncos, and Mavericks.
Other vehicles include newer Tesla, BMW, Audi, Volvo, Chevrolet, and GMC with OEM tow packages.
For LED Bar users experiencing dashboard warnings or rapidly flashing turn signals, you need to purchase a 4-pin flat to 7-pin round adapter with a built-in electrical resistor. This adapter mimics automotive bulbs' electrical current, potentially resolving compatibility issues. While we cannot guarantee universal compatibility, it has proven effective in most cases. Purchase the adapter at Etrailer.comorAmazon for seamless integration.
- Capacity: Two Bikes (Max. 80 lbs per bike)

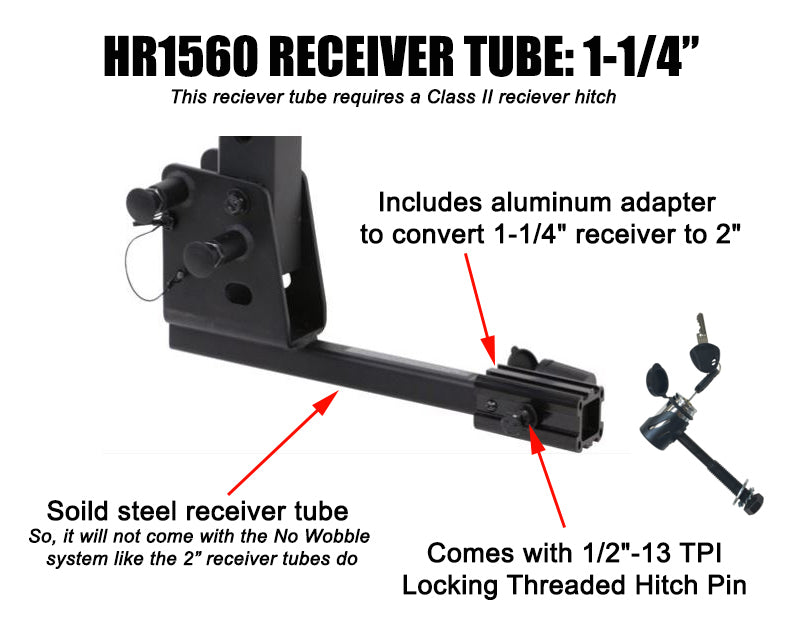

- Hitch Size: 1-1/4" & 2" (includes 2" aluminum adapter), a Class 2 hitch is required, a Class 1 hitch will not work.

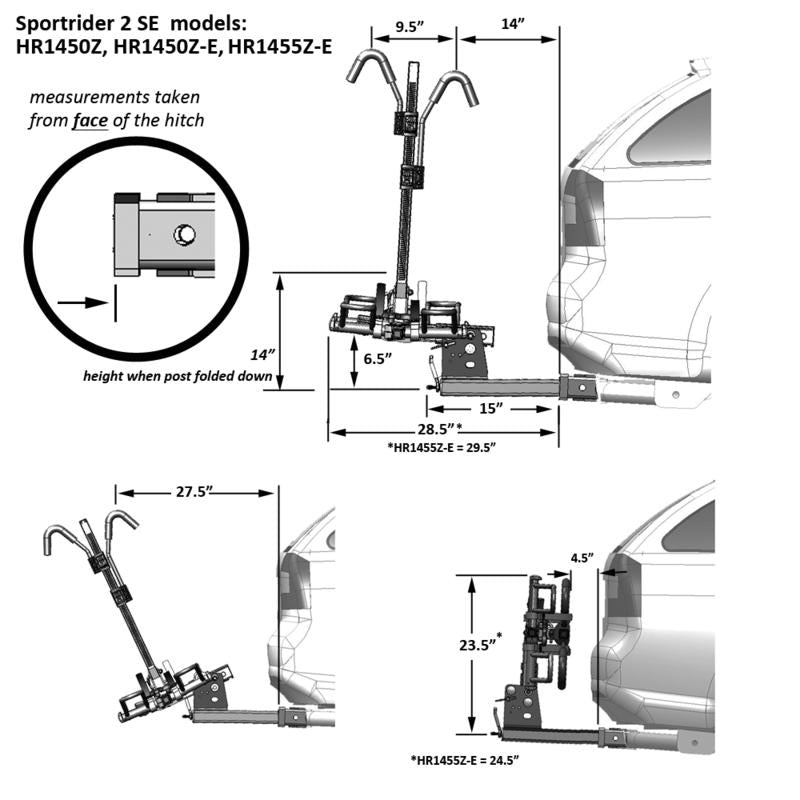

- Maximum bike wheelbase: 60”
- Maximum tire width: 5”

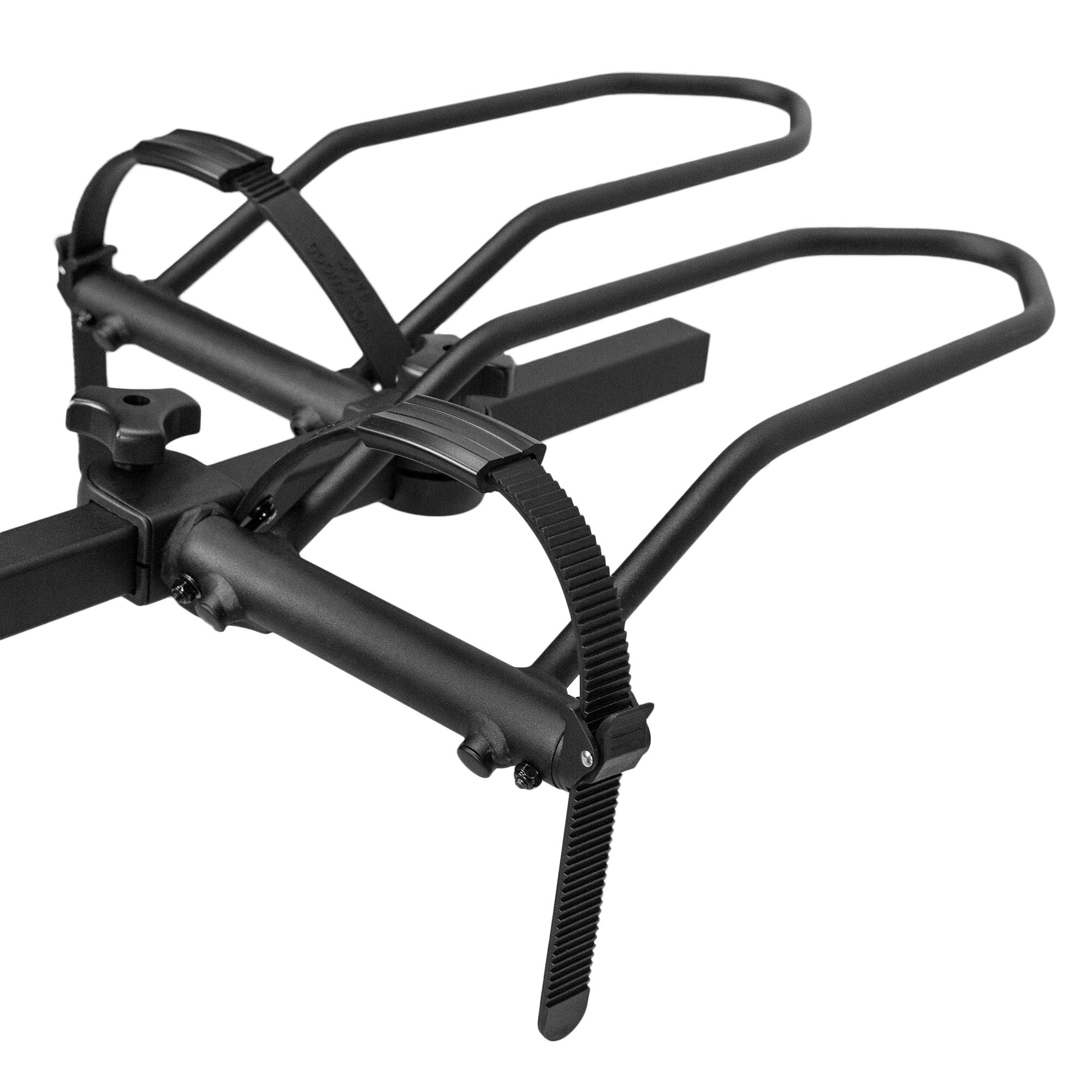

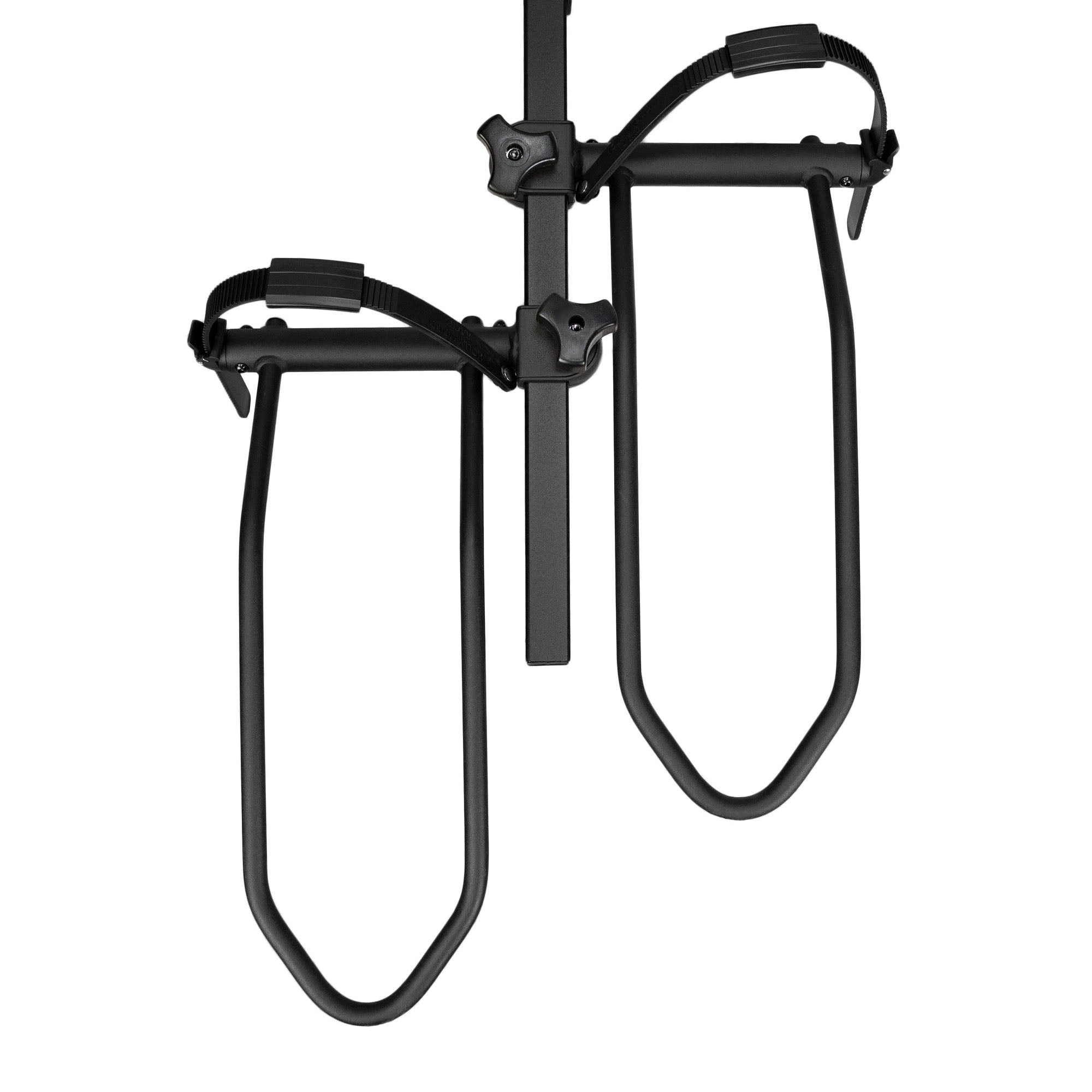

- Features extra heavy duty wheel holders (Now with a ratchet straps and rim protectors), an internally reinforced frame and external brace for heavy load carrying capacity
- Includes keyed alike locking hitch pin, 8’ security cable and locking frame hooks
- Uses a locking threaded 1/2-13 hitch pin
- Hitch tightener also included

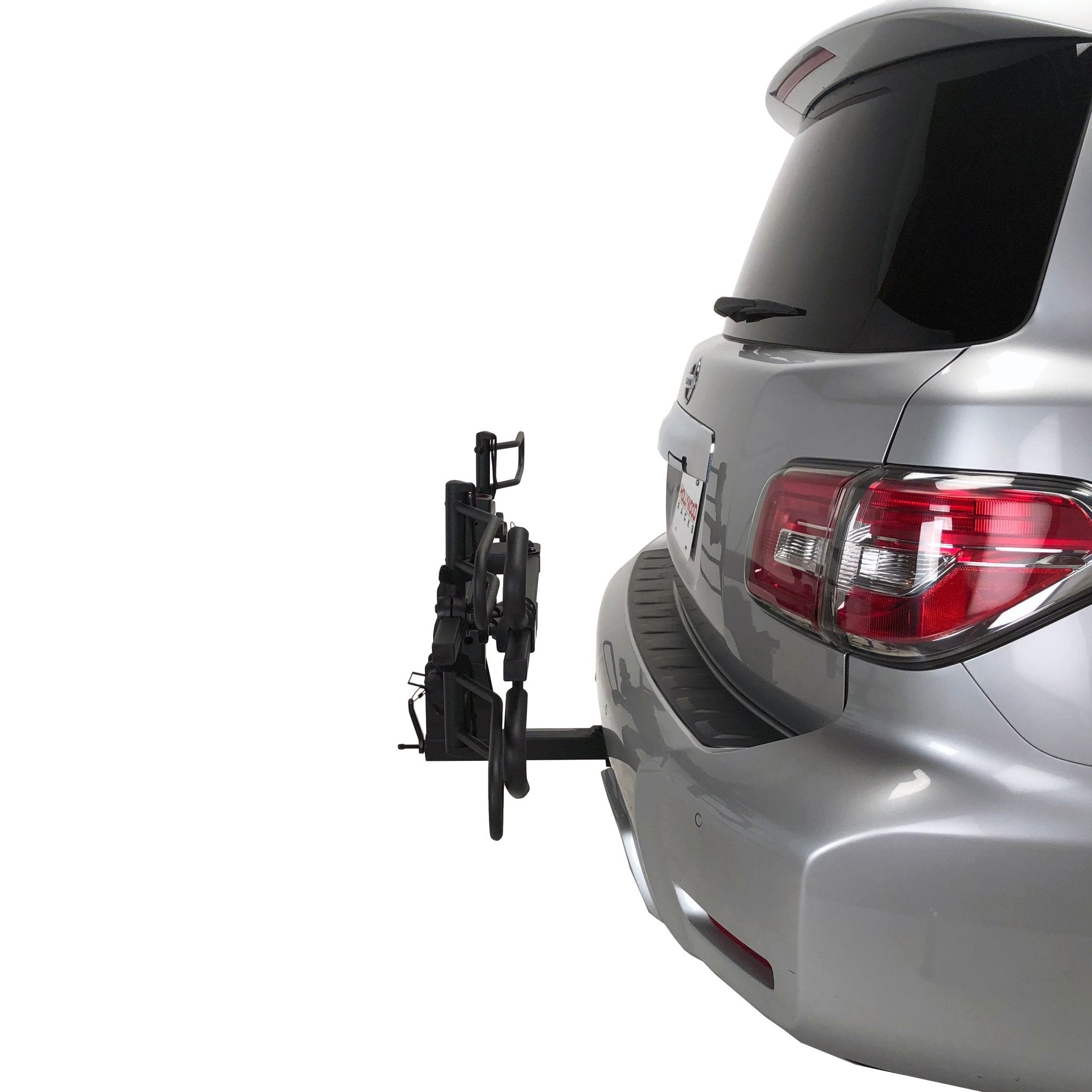

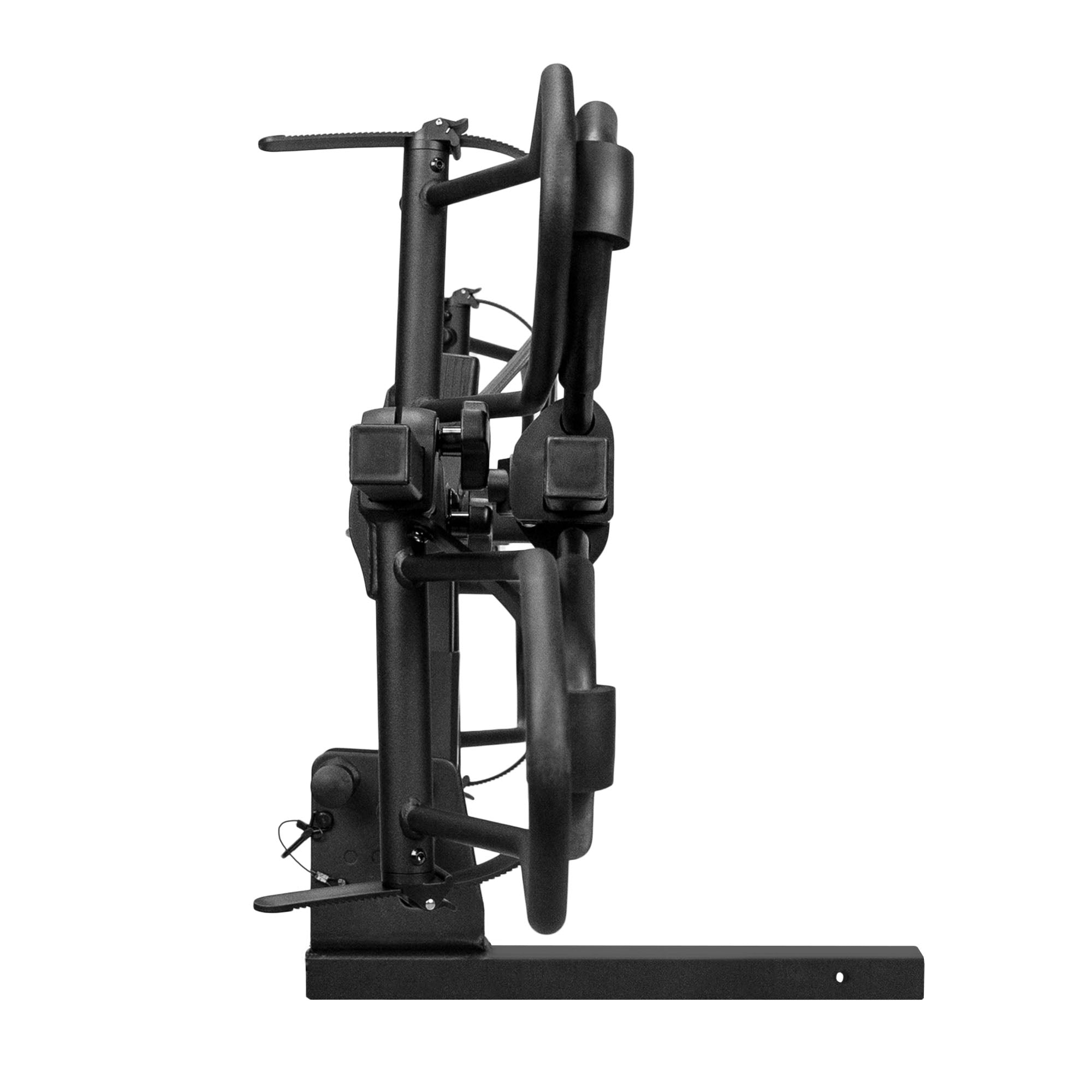

- Folds flat against car when not in use

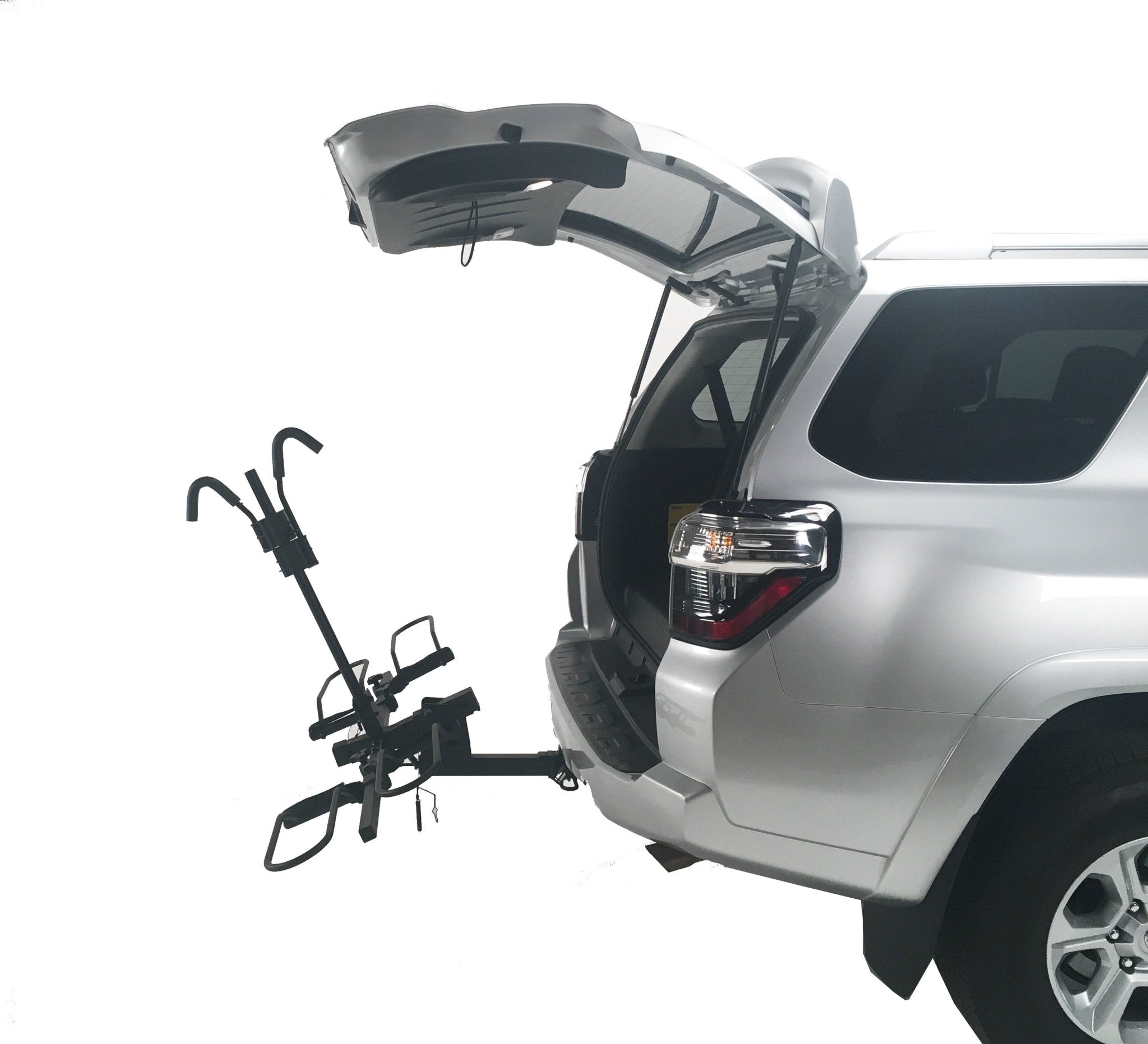

- Tilts down for easy cargo door access
- Space between bikes: 10
- For 20" Fat tire rear wheels you will need a Small Wheel Adapter (SW-ADP-U) to prevent derailleur hanger interference (You will only need one per bike)
- For step through bicycles you will need to also purchase a Bike Adapter
- Rack Weight: 58 lbs.
- Limited Lifetime Warranty
- Not to be used on 1-1/4" Class 1 hitches
- Not to be used on front hitches
- Not to be used with any Hitch Extension longer than 8"
- Not to be used with the Sport Rider SE2 Add on Kit or the Sport Rider SE Cargo Carrier Add On Kit
- Not to be used on any RV, trailer, fifth wheel or towed vehicle
Installation Video 2019 - 2023
Installation Instructions 2019 - 2023
2020 - 2023 Replacement Parts: HR1560
2019 - 2020 Replacement Parts: HR1460Z-E
2019 - 2020 Replacement Parts: HR1465Z-E
