The Sport Rider Hitch Bike Rack for Electric Bikes is the E-bike version of the Sport Rider SE2. This rack will carry 2 electric bikes or 2 standard bikes. Special features include extra heavy duty wheel holders for heavy load carrying capacity. This hitch rack folds up when not in use, tilts down for easy cargo access and includes a keyed alike locking hitch pin, security cable and locking frame hooks. For 1-1/4" Class 2 or above hitches.
Please note a 1-1/4 Class 2 hitch is required for this rack. If you are not sure what class size you have, please email us a photo of your receiver hitch and we will let you know.
A Class 1 and Class 2 hitches both have a 1-1/4 inch receiver hitch. The difference is that a Class 1 hitch has a lower tongue weight rating, usually 200 pounds and a lower towing rating, usually 2,000 pounds. A Class 2 hitch usually has a tongue weight rating of 350 pounds and a towing rating of 3,500 pounds.
- Dimensions & weight
- Dimensions Diagram
- Capacity: Two Bikes (Max. 80 lbs per bike)
- Hitch Size: 1-1/4" & 2" (includes 2" aluminum adapter), a Class 2 hitch is required, a Class 1 hitch will not work.
- Maximum bike wheelbase: 60”
- Maximum tire width: 5”
- Features extra heavy duty wheel holders (Now with a ratchet straps and rim protectors), an internally reinforced frame and external brace for heavy load carrying capacity
- Includes keyed alike locking hitch pin, 8’ security cable and locking frame hooks
- Uses a locking threaded 1/2-13 hitch pin
- Hitch tightener also included

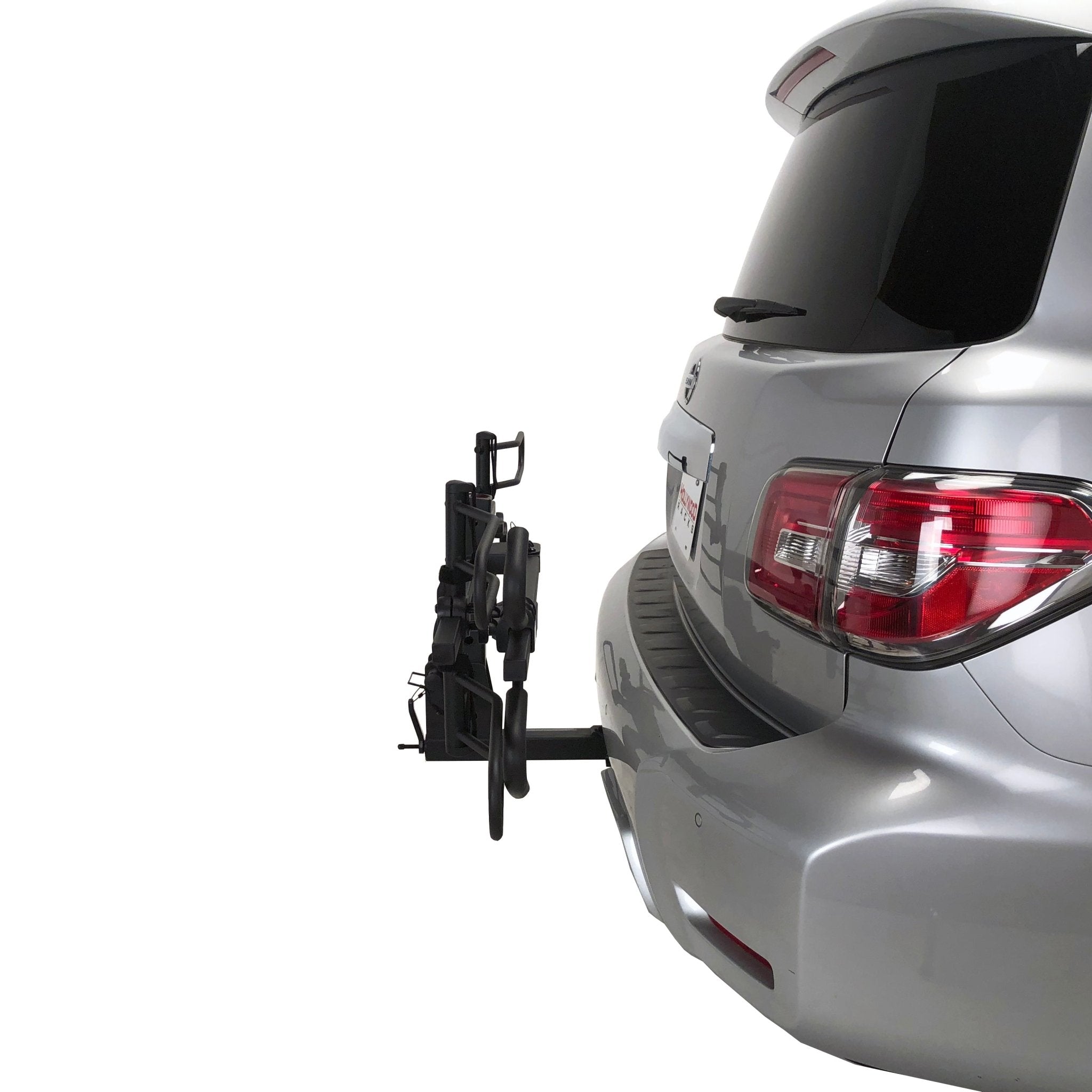

- Folds flat against car when not in use

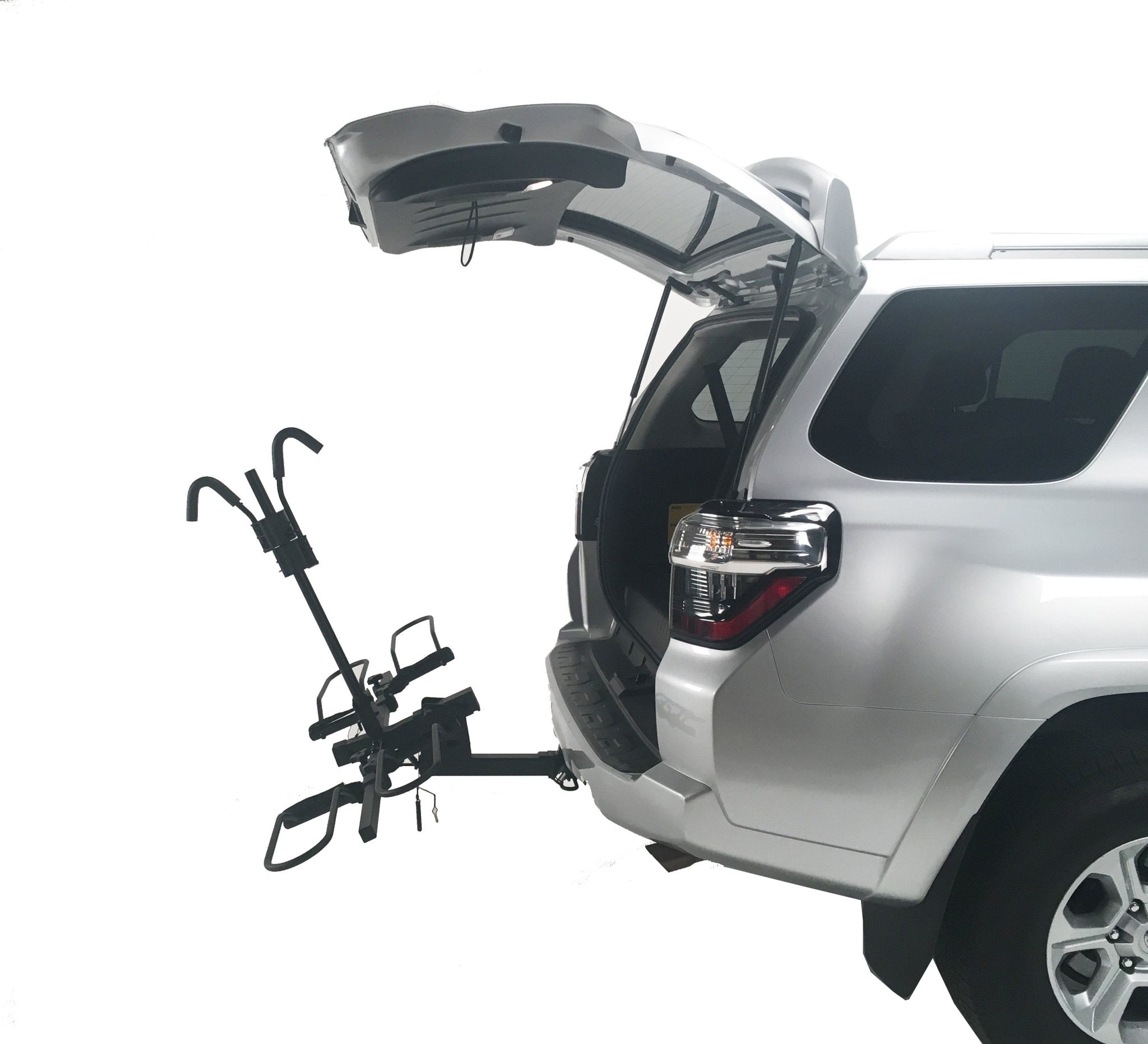

- Tilts down for easy cargo door access
- Space between bikes: 10
- For 20" Fat tire rear wheels you will need a Small Wheel Adapter (SW-ADP-U) to prevent derailleur hanger interference (You will only need one per bike)
- For step through bicycles you will need to also purchase a Bike Adapter
- Rack Weight: 58 lbs.
- Limited Lifetime Warranty
- Not to be used on 1-1/4" Class 1 hitches
- Not to be used on front hitches
- Not to be used with any Hitch Extension longer than 8"
- Not to be used with the Sport Rider SE2 Add on Kit or the Sport Rider SE Cargo Carrier Add On Kit
- Not to be used on any RV, trailer, fifth wheel or towed vehicle
Installation Video 2019 - 2023
Installation Instructions 2019 - 2023
2020 - 2023 Replacement Parts: HR1560
2019 - 2020 Replacement Parts: HR1460Z-E
2019 - 2020 Replacement Parts: HR1465Z-E
Sport Rider for Electric Bikes (1-1/4")
Add your Accessories before you proceed to checkout.
Description
Installation
Specifications
Upgrades
WE DON'T WANT TO REINVENT THE WHEEL. WE'RE JUST HAPPY CARRYING YOURS.
At Hollywood Racks, we design and manufacture bike racks for almost every bike, vehicle, and lifestyle. If you can ride it, we can carry it. We're a Los Angeles-based, family-owned and operated, and we're obsessed with helping you make your adventures even better by taking your bikes anywhere and everywhere.
The Sport Rider Hitch Bike Rack for Electric Bikes is the E-bike version of the Sport Rider SE2. This rack will carry 2 electric bikes or 2 standard bikes. Special features include extra heavy duty wheel holders for heavy load carrying capacity. This hitch rack folds up when not in use, tilts down for easy cargo access and includes a keyed alike locking hitch pin, security cable and locking frame hooks. For 1-1/4" Class 2 or above hitches.
Please note a 1-1/4 Class 2 hitch is required for this rack. If you are not sure what class size you have, please email us a photo of your receiver hitch and we will let you know.
A Class 1 and Class 2 hitches both have a 1-1/4 inch receiver hitch. The difference is that a Class 1 hitch has a lower tongue weight rating, usually 200 pounds and a lower towing rating, usually 2,000 pounds. A Class 2 hitch usually has a tongue weight rating of 350 pounds and a towing rating of 3,500 pounds.
- Capacity: Two Bikes (Max. 80 lbs per bike)
- Hitch Size: 1-1/4" & 2" (includes 2" aluminum adapter), a Class 2 hitch is required, a Class 1 hitch will not work.
- Maximum bike wheelbase: 60”
- Maximum tire width: 5”
- Features extra heavy duty wheel holders (Now with a ratchet straps and rim protectors), an internally reinforced frame and external brace for heavy load carrying capacity
- Includes keyed alike locking hitch pin, 8’ security cable and locking frame hooks
- Uses a locking threaded 1/2-13 hitch pin
- Hitch tightener also included
- Folds flat against car when not in use
- Tilts down for easy cargo door access
- Space between bikes: 10
- For 20" Fat tire rear wheels you will need a Small Wheel Adapter (SW-ADP-U) to prevent derailleur hanger interference (You will only need one per bike)
- For step through bicycles you will need to also purchase a Bike Adapter
- Rack Weight: 58 lbs.
- Limited Lifetime Warranty
- Not to be used on 1-1/4" Class 1 hitches
- Not to be used on front hitches
- Not to be used with any Hitch Extension longer than 8"
- Not to be used with the Sport Rider SE2 Add on Kit or the Sport Rider SE Cargo Carrier Add On Kit
- Not to be used on any RV, trailer, fifth wheel or towed vehicle
Installation Video 2019 - 2023
Installation Instructions 2019 - 2023
2020 - 2023 Replacement Parts: HR1560
2019 - 2020 Replacement Parts: HR1460Z-E
2019 - 2020 Replacement Parts: HR1465Z-E
